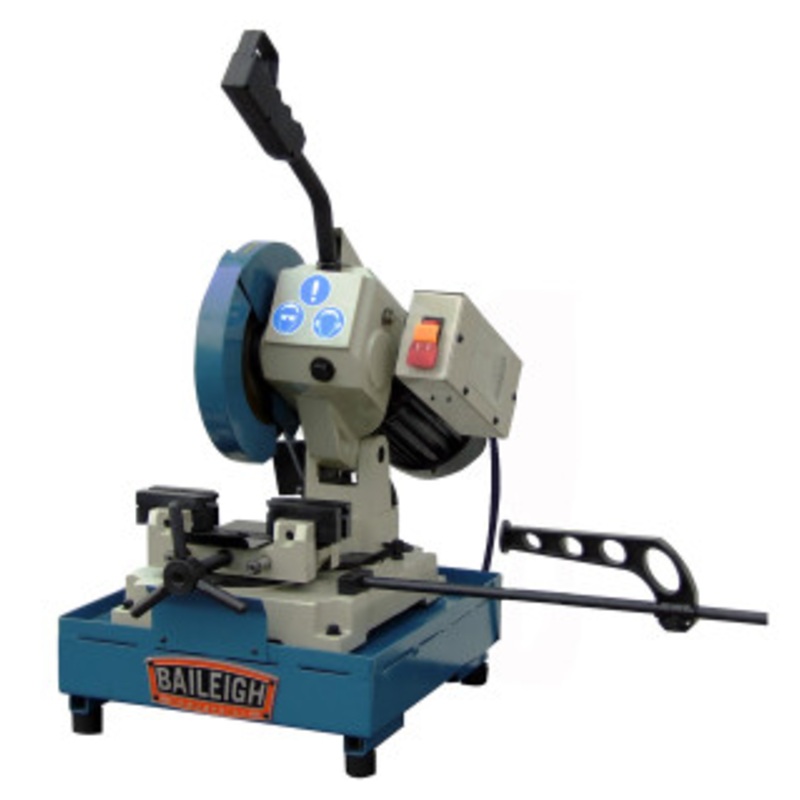

Baileigh CS-225M-V2 Bench Top Cold Saw, 9″ Blade – BA9-1013715
The CS-225M makesburr-free cutslike only a cold saw can. This portablebenchtopsaw has acast baseand aflood coolant system, often found only on more expensive models.
- Accepts a9″ blade(included).
- Its oursmallestcold saw.
- 2.5″ round tubemaximum capacity at 90.
- Miters up to45 to the left.
- Spins at50 rpm, optimal for cutting many different kinds of materials.
- Cuts tubing, pipe, angle iron, solids, and much more.
- 1 hpmotor runs on110 volts, so you can plug it in anywhere.
- Self-centering American-style visekeeps the material in the right position with respect to the blade.
- Vise grips the material on both sides of the blade forextra support.
- Direct drive gearbox(encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.
- Stop rodhelps with repeatability for small production runs.
- Heavy-duty cast iron basestabilizes the machine, so that it can deliver accurate cuts for many years.
- Flood coolant systemmaintains high cut quality and helps both the saw and its blades last longer.
- Covered by a1-year warranty.
- Includeslifetime technical support by phonefrom Baileigh’s team with hands-on metalworking experience.
Recommended for:
- Hobbyists and small fab shops.
- Larger maintenance or R&D shops that need an entry-level cold saw.
Specifications:
| Part Number |
CS-225M-V2 |
| Stock Number |
BA9-1013715 |
| Max. Blade Diameter |
9″ |
| Operation |
Manual |
| Head Miter |
45 Left / 30 Right |
| Round Solid at 45 |
1.5″ |
| Square Tube at 45 |
2″ x 2″ |
| Round Tube at 45 |
2.125″ |
| Round Solid at 90 |
1.75″ |
| Square Tube at 90 |
2.25″ x 2.25″ |
| Round Tube at 90 |
2.5″ |
| Coolant System |
Yes |
| Vice Style |
Dual Action, Self Centering |
| Max. Vice Opening |
2.75″ |
| Head Style |
Pivot |
| Arbor Size |
1.26″ |
| Motor |
1 hp |
| Blade Speed |
50 rpm |
| Power |
110V |
| Shipping Weight |
200 lbs |
| Shipping Dimensions |
28″ x 20″ x 25″ |
