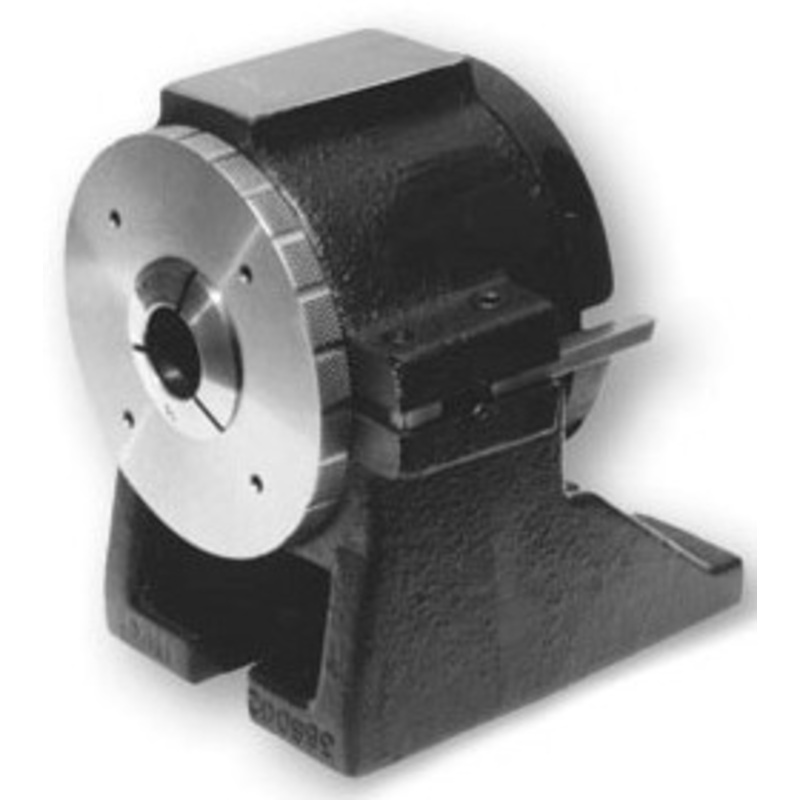

Kalamazoo 5C, 5C Collet Indexing Fixture

• Index fixture with 24 space ring and draw nut.(index rings 0-36 spaces available)
• Centerline Height: 3-1/4″
• For drilling, milling, grinding and locating angles.
• Index ring easily changed by pulling spindle out and sliding new ring on.
• Use in vertical position with angle plate.
• Precision ground spindle.
• Rugged, Plate can be bolted to top for drill bushing.
• Quality built in Kalamazoo, MI
• Model : #5C complete with 24 space index ring and draw nut.
• Options: Made in USA!
  • AT standard tailstock # AT
  • AS stub arbor w/ 1″ -10 thd. # AS
  • AR-20 20 space index ring
  • AR-36 36 space index ring
  • LC Lever collet closer. # LC ( see product index)
