Sale!

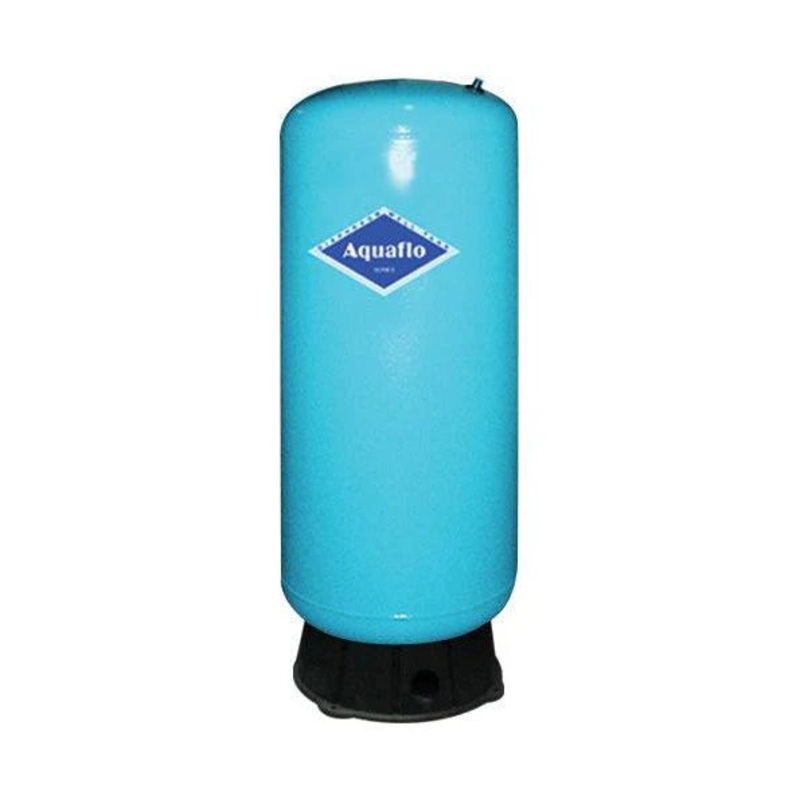

Aquaflo GCN Diaphragm Pressure Tank

Aquaflo GCN Diaphragm Pressure TankIdeally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems and hydraulic hammer arresting. This is well suited for large residential and light commercial applications

$149.00 $351.00

Size:

Aquaflo GCN Diaphragm Pressure Tank

Ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems and hydraulic hammer arresting. This is well suited for large residential and light commercial applications

Made in USA
Max Working Pressure: 8.5 Bars, 125 Psi
Standard Precharge: 125 Bars, 15 Psi
Max. Working Temperature: 90 Celsius / 194 Fahrenheit
Vertical with Base\

Model	Rated Gal. Size	Tank Volume (gal)	Draw down vol (gal) 20/40 psi	Height (cm)	Diameter (cm)	Base (cm)	Connector	Price
GCNBUE-25GV	82	26	9.6	89.9	40.6	4.8	1 inch	19,500.00
GCNBUE-35GV	120	33	12.3	110.5	43.5	4.8	1 inch	23,500.00
GCNBUE-60GV	220	62	22.9	121.2	47.8	5.6	1-1/4 Inch	34,500.00
GCNBUE-80GV	315	80	29.6	150	53.3	5.59	1-1/4 Inch	37,500.00
GCNBUE-120GV	450	119	43.6	152.9	66	5.9	1-1/4 Inch	57,000.00
