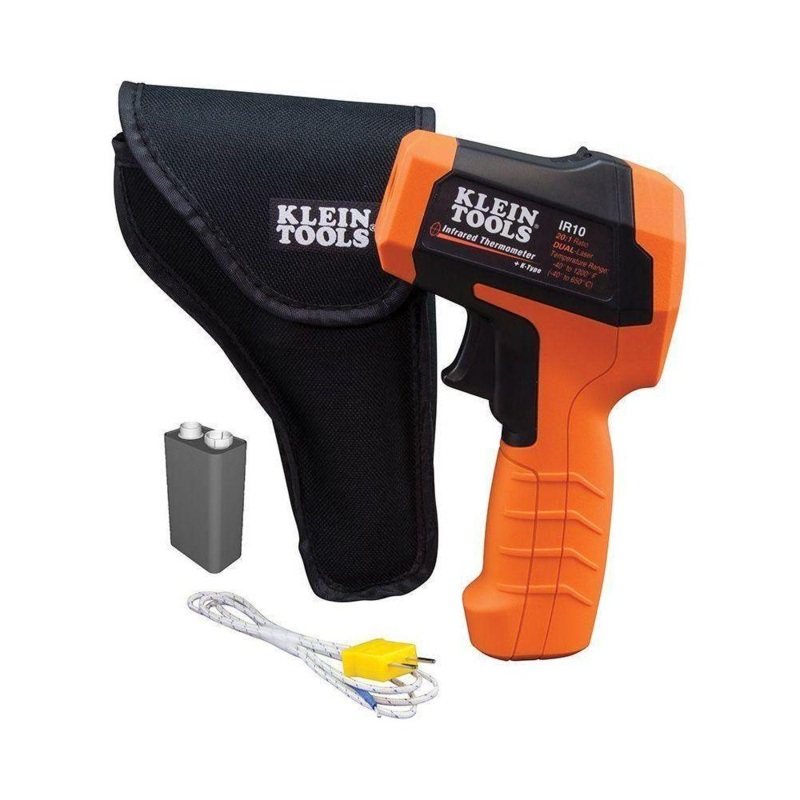

Dual-Laser Infrared Thermometer, 20:1

Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.

• Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe
• Dual targeting lasers offer more accurate determination of the area being tested
• Optical Resolution (Distance-to-Spot) is 20:1
• Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
• Not a medical device; thermometer is NOT intended for use on people or animals.
• Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
• Bright backlit display for working in low ambient lighting conditions
• Statistical parameters for measurement event – max/min/avg/diff
• User definable high/low limits with audible and visual alarms when limits are breached
• Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on
• Includes custom pouch, K-Type probe and battery
• Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
• ”Auto Power-Off” conserves and extends battery life
• IP54 ingress protections for dust and water resistance
• U.S. patent D791,624\

Specifications

• Type: Dual-Laser Infrared Thermometer
• Application: Temperature Measurements Using IR Emission or K-Type Probe
• Special Features: Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
• Audible Alert: Y
• Material: Plastic Housing, Electronic Components
• Batteries: 1 x 9V
• Distance to Spot: 20:1
• Accuracy: IR: 32 F and Above: +/- 3 F or +/- 1.5% (Whichever is Greater); Less Than 32 F: +/- (3.6 F + 0.2 F per Degree); K-Type: 32 F and Above: +/- 2 F or +/-% (Whichever is Greater); Above 32 F: +/- 3 or +/1% (Whichever is Greater)
• Calculations: Min/Max/Difference/Average
• Display: Digital Backlit
• Display Resolution: 0.1F (0.1 C)
• Response Time: <150ms
• Auto Calibration: N
• Degree Format: F or C
• Range: -40 to 1200 F (-40 to 650 C)
• Standard: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
• Drop Protection: 3 m
• Ingress Protection: IP54
• Included: Custom Pouch, K-Type Probe and Battery
• Overall Length: 7” (17.8 cm)
• Overall Width: 2.05” (5.2 cm)
• Overall Height: 4.49” (11.4 cm)
• Weight: 7.40 oz (210.0 g)


WARNINGS

• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Laser Radiation, Class 2 laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries. NEVER look directly into the laser beam emitted by this instrument.
• Thermometer is NOT intended for use on people or animals.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
