Wichard Self-Locking Allen Head Pin Bow Shackle – 8mm Diameter – 5/16″ – 1344

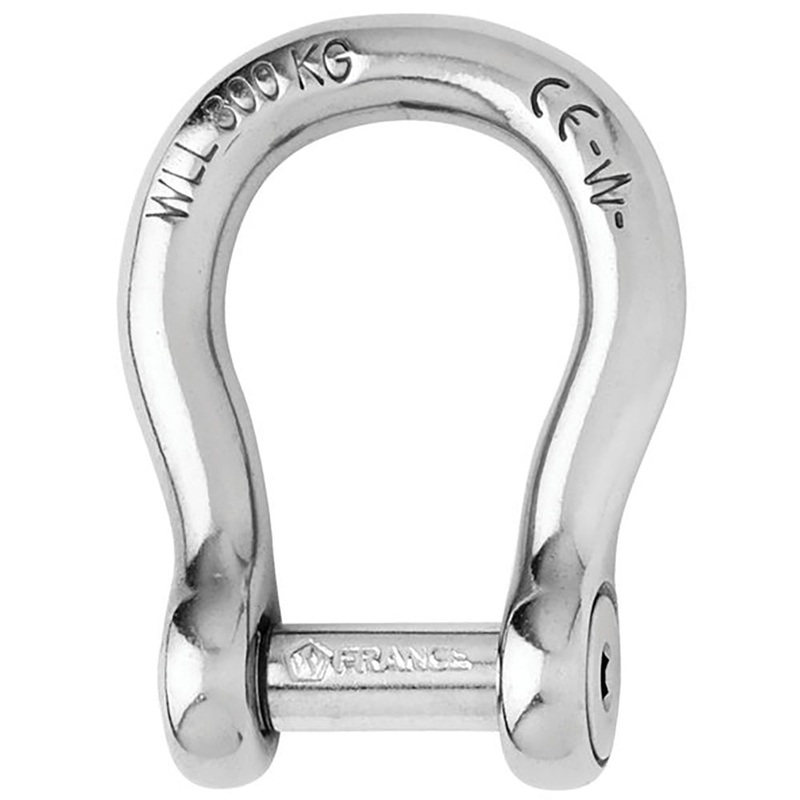

Self-Locking Allen Head Pin Bow Shackle – 8mm Diameter – 5/16″

Features:

• Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Ideal for linking chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced
• To be used when ample room is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2110 / (kg) 960
• WLL: (lb) 1190 / (kg) 540
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.148 / (g) 67

Dimensions:

• A: (inch) 1 29/64″ / (mm) 37
• B: (inch) 5/8″ / (mm) 16
• C: (inch) 5/16″ / (mm) 8
• D: (inch) 5/8″ / (mm) 16
• D diameter: (inch) 5/16″ / (mm) 8
• E: (inch) 9/32″ / (mm) 7
• F: (inch) 63/64″ / (mm) 25
• M: (inch) 1 37/64″ / (mm) 40

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Product : WICHARD 5/16 ALLEN HEAD BOW SHACKLE
Manufacturer : Wichard Marine
Manufacturer Part No : 01344
