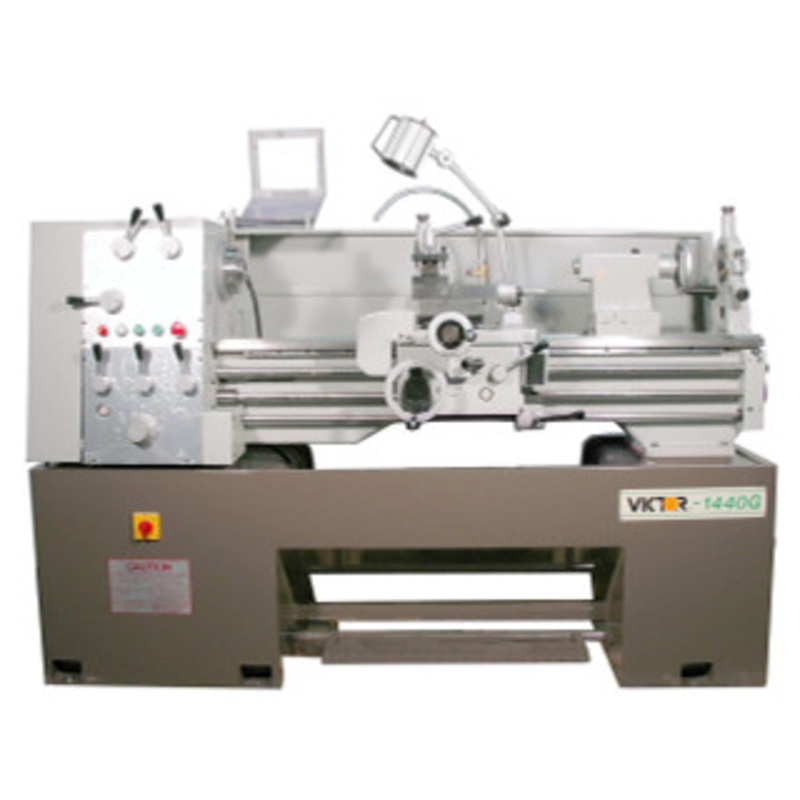

VICTOR 1440G Precision High Speed Lathes

1440G Precision High Speed Lathe Features:

• Headstock gear are made of CR-MO alloy steel
• Hardened and ground bed ways
• Telescopic cross slide
• Cross slide ways are ground
• Rigid one piece cast iron base with full length foot brake
• Adjustable feed clutch
• Dual gear box for easy switch of inch and metric threads
• Oil bath lubrication for headstock, gearbox & apron
• Low voltage controls for extra safety operation

1440GVS Infinitely Variable Speed Lathe Features:

• 2 Steps Infinitely Variable Speed:
  Low Gear: 30 ~ 360 RPM, High Gear: 160 ~ 2500 RPM
• Headstock gear are made of CR-MO alloy steel
• Hardened and ground bed ways
• Totally enclosed oil bath headstock, apron and gear box
• Feed engage lever operated by pull-up, and disengage operated by push-down to ensure exact and fast operation
• Equipped with Yaskawa Varispeed-606PC3 all-digital, high-performance and low-noise inverters
• One piece cast iron stand with rapid brake

Standard Machine Accessories:

• Halogen work light
• Dead Centers M.T. #3
• Reducing sleeve
• Threading dial indicator
• Tool box with kits
• Four way tool post
• Instruction manual and parts list
• Gap bed
• Coolant system
• Chuck cover with micro switch
• Full length splash guard

Special Package Includes:

• 6″ 3-Jaw Chuck
• 8″ 4-Jaw Chuck
• Steady Rest w/ Brass Tips
• Follow Rest
• 4-Way Tool Post
• Face Plate
• Full Length Splash Guard
• Halogen Work Light
• Chuck Cover w/ Limit Switch

Specifications:

1440G 1440GVS CAPACITY Max. swing over bed 14″ (360 mm) Max. swing over cross carriage 9″ (233 mm) Max. swing in gap 21″ (538 mm) Width of gap 9.8″ (250 mm) Width of bed 10″ (255 mm) Max. distance between centers 39.4″ (1,000 mm) HEADSTOCK Spindle bore diameter 1-9/16″ (40 mm) Spindle bore taper M.T. #5 Taper of center in sleeve M.T. #3 Spindle nose Camlock D1-4 Number of spindle speeds 16 steps Variable – 2 steps
(YASKAWA Brand Control) Range of spindle speeds (rpm) 42 ~ 2,000 rpm Low gear : 30 ~ 360 rpm
High gear : 160 ~ 2,500 rpm THREADS & FEEDS Range of longitudinal feeds 0.002″ ~ 0.04″/rev. (0.05 ~ 1.0 mm/rev.) Range of cross feeds 0.001″ ~ 0.02″/rev. (0.025 ~ 0.5 mm/rev.) Pitch of leadscrew 1″ (25 mm) or 4TPI (6 mm / pitch) Inch threads 4 ~ 112 TPI x 40 kinds Metric threads 0.25 ~ 6.0 mm x 22 kinds CARRIAGE Cross slide travel 8-1/16″ (205 mm) Compound slide travel 3-3/4″ (95 mm) TAILSTOCK Tailstock taper center M.T. #3 Spindle travel 4-1/4″ (110 mm) Spindle diameter 1-1/2″ (38 mm) POWER Main motor 3HP 3 Phase Coolant pump 1/8 HP 3 Phase MACHINE Shipping dimensions (L x W x H) 78″ x 30″ x 60″
(1,980 x 760 x 1,520 mm) Net weight 2,244 lb. (1,020 kg.) Gross weight 2,794 lb. (1,270 kg.)
