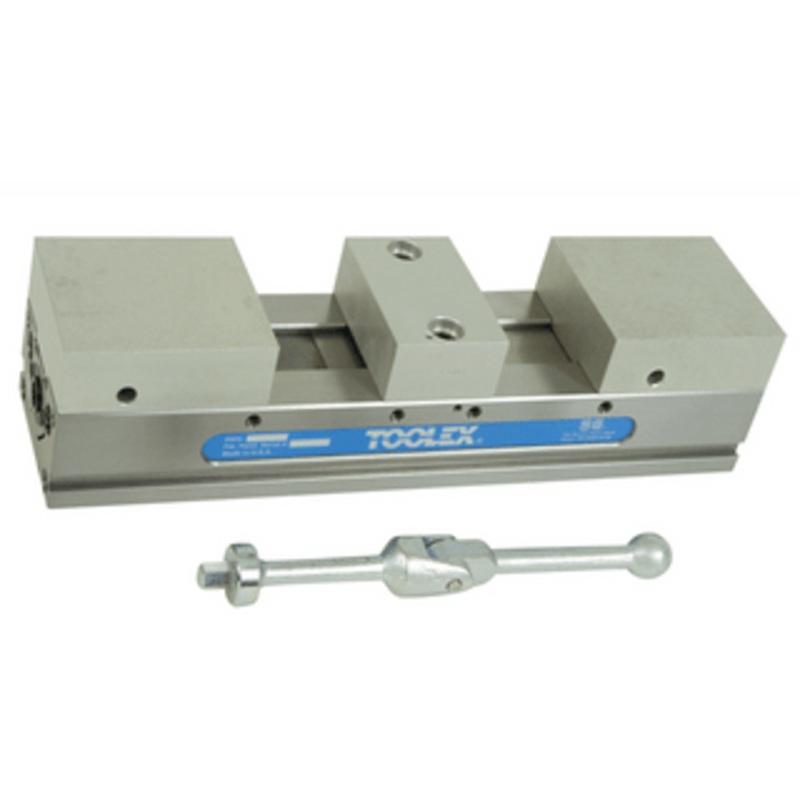

Toolex ReLock Double Station Vise with Machinable Soft Jaws, 6″ – RWS-600

Bodies are manufactured from 80,000 PSI ductile cast iron, and ways are flame hardened and ground to accuracies of +/-.0005.

Outside carrier jaws manufactured from high quality aluminum material.

ReLock Modular Workholding System

The ReLock Vise System combines high manufactured tolerances with unequalled versatility in providing two-station and eight-station production vises. ReLock CNC vises, available with machinable soft jaws, hard jaws, master jaws and parallels, or fixture plates, allow the machinist a variety of configurations with the same vise. Bodies are manufactured from 80,000 PSI ductile cast iron, and ways are flame hardened and ground to accuracies of +/- .0005. Manual and hydraulic two-station and eight-station vises are available in widths of 4, 6 and 8.

• Reduce setup times: The systems SnapLock feature allows you to change or index jaws in a matter of seconds.
• Extremely versatile: Offers the most comprehensive array of jaws and accessories available for vertical or horizontal machining applications.
• Accurate and durable: Designed and precision manufactured from high grade materials to meet todays extreme accuracy and durability requirements.

Features and Benefits:

Optimized table space

• Compact modular design allows a multitude of mounting configurations. Vises can be mounted close together without hindering removal or attachment of jaws.

Auto Offset Mechanism

• Exclusive automatic offset mechanism allows nonsimultaneous work piece clamping and unclamping to one of three optional offset settings: 4 and 6: .030, .125, or .250; 8: .125, .250, or .375. The offset setting is the distance the rear jaw backs away from the work piece before the front jaw begins to back away from the work piece.

Locating and Mounting

• Locating and mounting options are simple and accurate. The bottom surface of the system has four precision dowel pin holes for locating and four drilled and counter bored holes drilled through from the top surface for rugged mounting. Side toe clamp slots are also incorprated for mounting.

SnapLock Knuckle

• Exclusive SnapLock Knuckle allows SnapLock soft jaws and SnapLock carrier jaws to be attached and removed in seconds. The knuckles angle notch engages with the jaws pressure pin, eliminating jaw deflection.

ReLock Chip Shields

• ReLocks unique three-piece telescoping chip shield wraps completely around the SnapLock knuckles, keeping chips from getting into the vises clamping mechanism. Shields can be quickly and easily removed for maintenance purposes.

Center Jaw Location

• The ReLock’s center jaw locating studs allow quick jaw mounting and indexing to accuracies of +.0005″. Fool-proof pin eliminates the possibility of the jaws being accidentally mounted in reverse.

Single Station Conversion Plate

• Used in conjunction with SnapLock carrier jaws, the conversion plate allows the ReLock system to be converted from a double to a single station vise ideal for larger work pieces.

Specifications:

Model RWS6002SJ Item Number RWS-600 Vise Size 6 in Type Double Station Vise Total Height (A) 3.250 in Total Width (B) 6.000 in Total Length (C) 20.500 in Hole Spacing – Across A (D) 4.000 in Hole Spacing – Across B (E) 5.000 in Hole Spacing A (F) 12.000 in Hole Spacing B (G) 10.000 in Groove Width (H) 0.562 in Groove Position (J) 0.750 in Groove Depth (K) 0.250 in L 3/8/2016 Hole Diameter A (M) 0.501 in Hole Depth A (N) 0.630 in Material Cast Iron Clamping Pressure 0 to 12000 lb Holding Force [Max] 0 to 12000 lbs Weight 68.00 lb

Click to View More Specifications & Information

Package includes:

• Double Station Vise and 3-piece Machinable Soft Jaw Set
• Handle and tool kit (pry wrench and hex wrenches)
