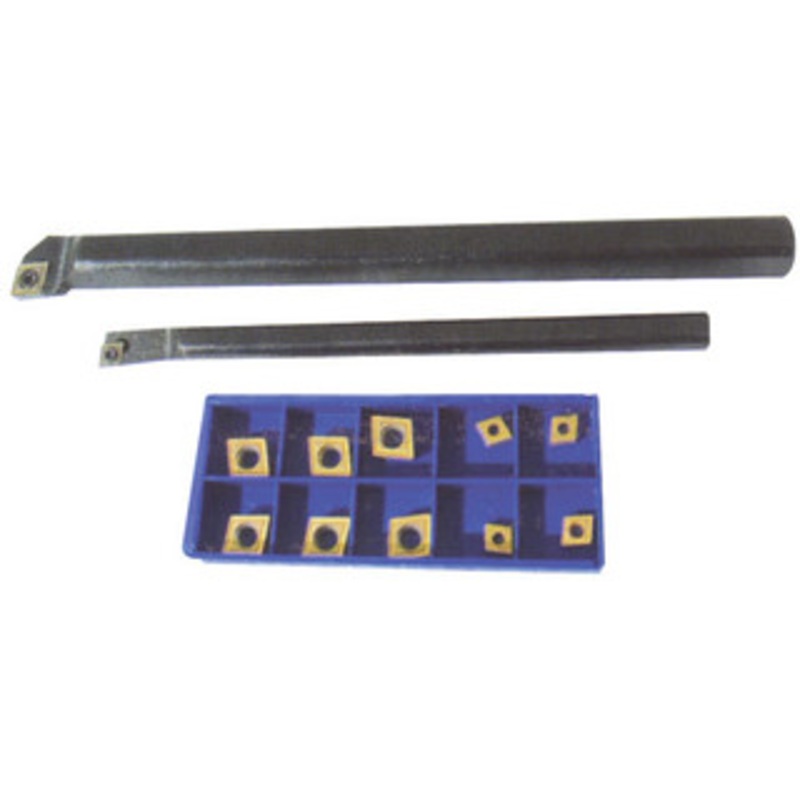

TMX Indexable Boring Bar, SI-SCLCR 4-2, Right Hand, 0.315″ Shank Dia., 4″ Length – 6-870-042R

SI-SCLC R for Positive 80 CC Inserts

SI-SCLCR Style, Right hand
.315″ (8mm) Dia. Boring Bar, with -5 Lead for CCxx 21.5x Inserts

Technical Data:

Style SI-SCLC R/L 4-2 Shank Size d in 0.315 Min Bore D in 0.354 OAL L in 4 F in 0.1875 Insert Geometry CCMT, CCGT Insert Size ASA 21.5_ Tolerances Tolerance: Kr = +/- 1 Tolerance: F = +0.0/-0.01 mm Tolerance: d = +0.0/-0.0014 mm Tolerance: L = +0.087/-0.0 mm Spare Parts Insert Screw 6-998-2504 Torx Key T7 6-998-007 Anti Seize Lube 290-ASEIZE-03 2015 TMX Cutting Catalog Page 195

See all TMX Indexable Boring Bars, SI-SCLC R/L for Positive 80 CC Inserts
