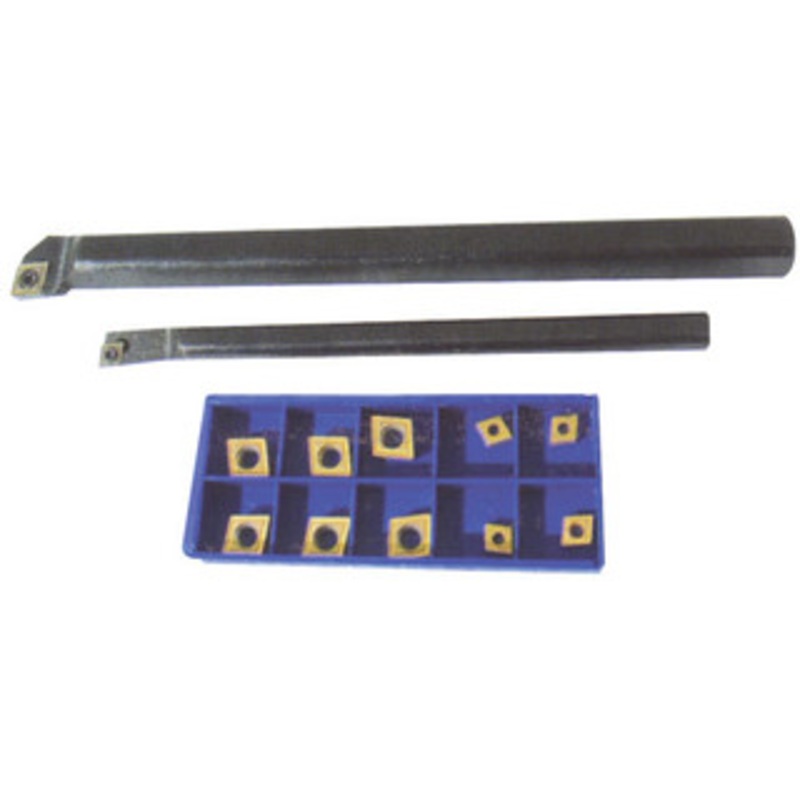

TMX Indexable Boring Bar, SI-SCLCR 10-3, Right Hand, 0.625″ Shank Dia., 8″ Length – 6-870-103R

SI-SCLC R for Positive 80 CC Inserts

SI-SCLCR Style, Right hand
0.625″ (5/8″) Dia. Boring Bar, with -5 Lead for CCxx 32.5x Inserts

Technical Data:

Style SI-SCLC R/L 10-3 Shank Size d in 0.625 Min Bore D in 0.812 OAL L in 8 Head F in 0.406 Insert Geometry CCMT, CCGT Insert Size ASA 32.5_ Tolerances Tolerance: Kr = +/- 1 Tolerance: F = +0.0/-0.01 mm Tolerance: d = +0.0/-0.0017 mm Tolerance: L = +0.114/-0.0 mm Spare Parts Insert Screw 6-998-4008T Torx Key T15 6-998-015 Anti Seize Lube 290-ASEIZE-03 2015 TMX Cutting Catalog Page 195
