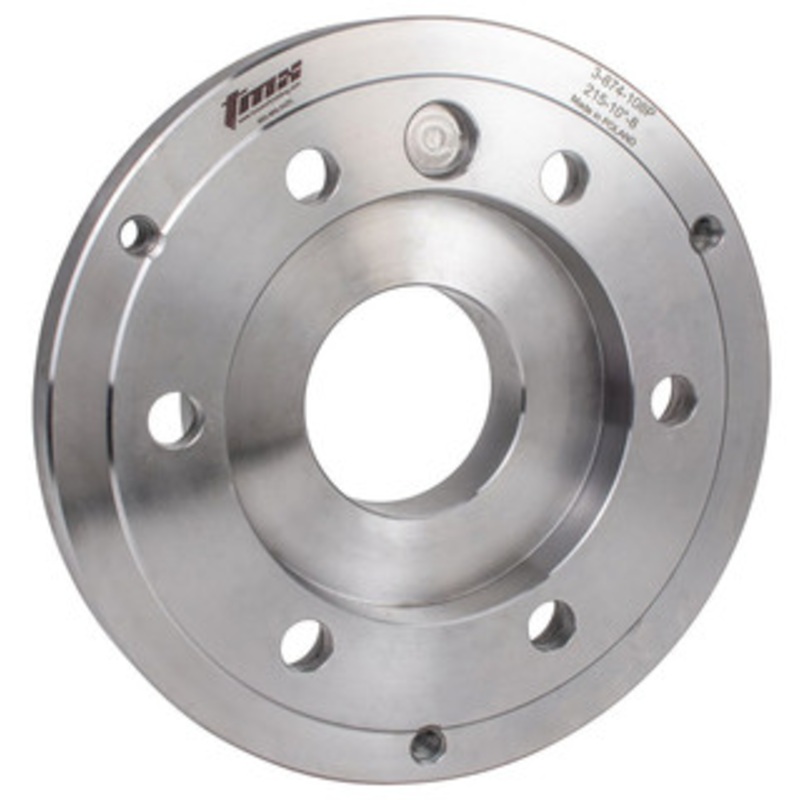

TMX Fully Machined Type A Steel Backplate for SET-TRU Chucks, 5in A2-4 – 3-874-054P

• Designed to mount on A2 American Standard Spindles

Technical Data:

For use with Chuck Size 5 in For use with Chuck Type SET-TRU Spindle mount A2-4 Machined Fully Finished Weight 4.84 lbs. (2.2 kg) A in(mm) 4.921 (125) B in(mm) 1.417 (36) B1 in(mm) 0.551 (14) C in(mm) 2.165 (55) D in(mm) 2.501 (63.513) E in(mm) 1.378 (35) F in(mm) 3.252 (82.6) Chuck Mounting Holes G M8 H in(mm) 4.252 (108) K in(mm) 0.866 (22) Spindle Mounting Bolts N M10 Number of Bolts 6

See all TMX Fully Machined Type A Steel Backplates for SET-TRU Chucks
