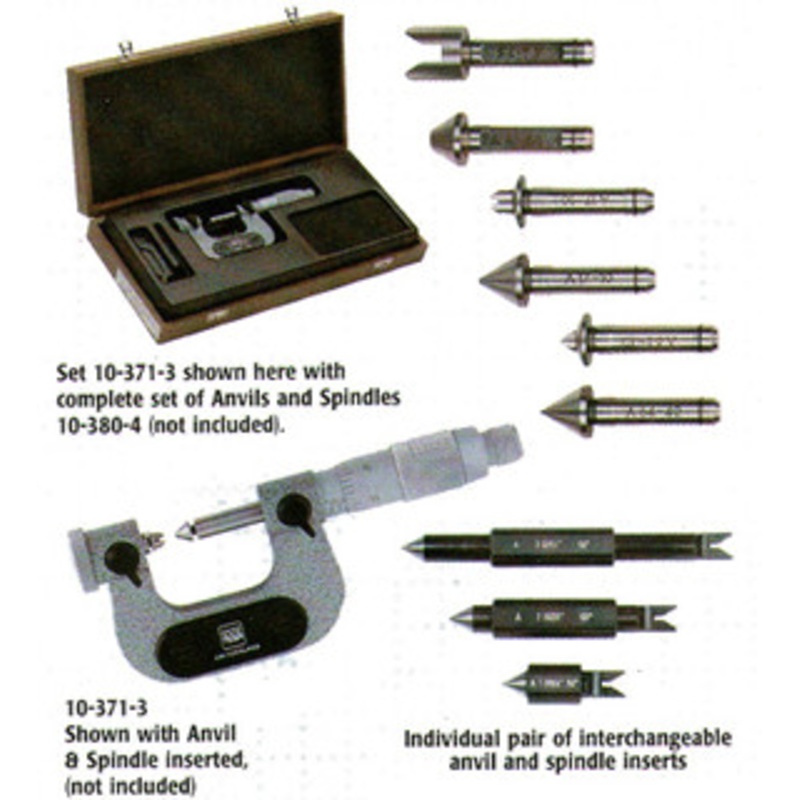

TESA Threadmaster, Interchangeable with Anvil and Spindle Sets

Features:

• Direct reading of pitch diameters in all threads from 2.5 to 64 TPI or metric screw threads 0,4 to 6,0 with interchangeable anvil and spindle pairs.
• Exclusive, simple & accurate setting.
• Micro-fine slant line graduations.
• Light touch friction drive.
• Forged steel frame with hammered lacquer coating.
• Simple insertion of anvils and spindles.
• Anvils and spindles made of tool steel, hardened and ground.
• Anvils and spindle sets for Whitworth threads on request.
• Each mike complete with fitted case.
• Mikes are priced separately and do not include set of anvils and spindles or individual pairs nor the required setting standards.

Interchangeable Anvils and Spindles

• Made of tool steel, hardened and ground
