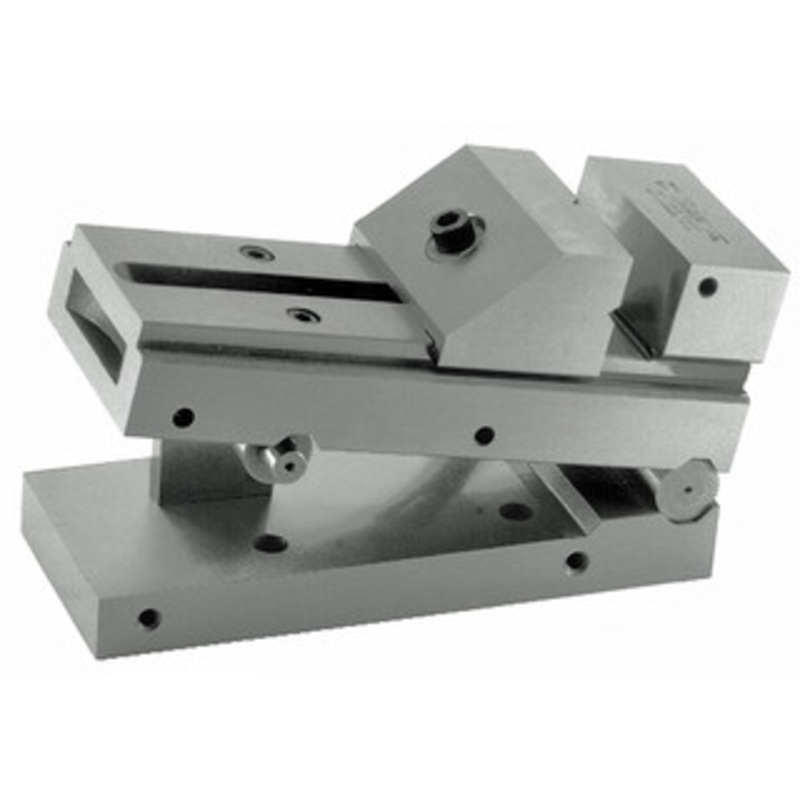

Suburban Sine Vise, SineSet Compatible
4-3/4″ Jaw Capacity
SV-337-S1

• Provides a quick and accurate means of holding a workpiece at an angle for grinding or inspection.

• Angled center channel provides extra holding capacity.

• Solid, one-piece body.

• Made from steel, hardened to Rc 58-60.

• Movable jaw pulls into base at 45 to 60 to insure maximum holding power and hold down force, eliminating tilting and lifting.

• Dual 0.200″ minute steps built into the gage roll allow setting small angles with standard gage blocks.

• SV-337 models have small horizontal and vertical vees in the movable jaw and a ratchet mechanism with notched pockets and a one-piece drawbar.

• One locking strap included with each sine vise.

• SineSet models bolt directly to a SineSet sine plate or compound sine plate of the same series. S1 models also bolt to the AP-664-S1 90 conversion plate.

Specifications:
