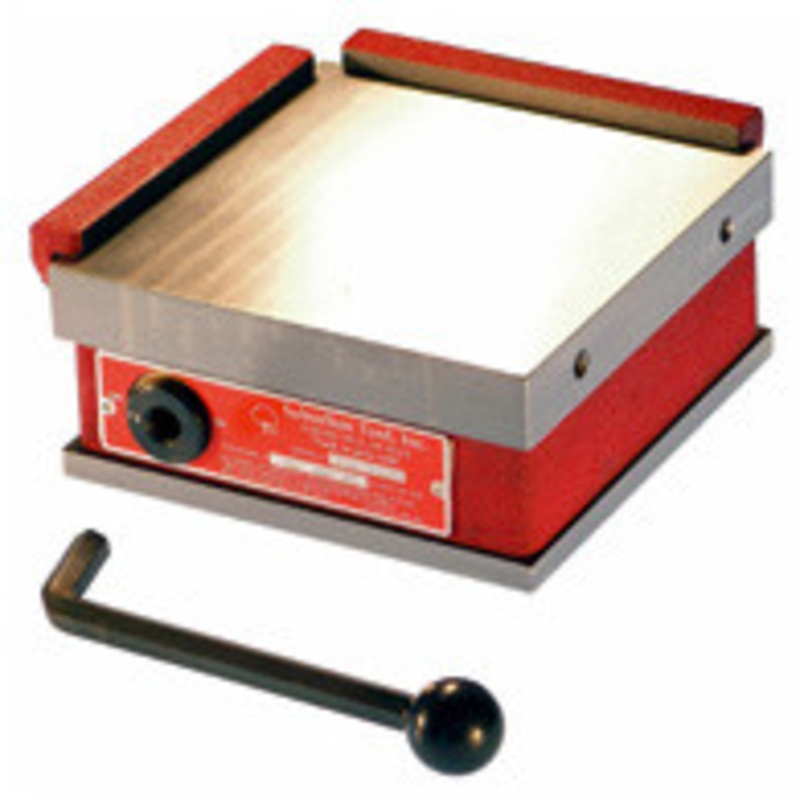

Suburban Rectangular Magnetic Chuck – MC-66-S1
Standard Pole, 6 ” x 6″ x 2-5/8″

Permanent Magnetic Sine Plate & Squaring Chucks

Models with the suffix “S0, S1 or S2” are part of the SineSet System. The chucks are designed to bolt directly, with little or no indicating, to a SineSet sine plate or compound sine plate of the same size and series to form a magnetic sine plate or magnetic compound sine plate.

STANDARD POLE: 1/4″ poles and 1/8″ separators produce deep flux lines for holding large and thick parts.

FINE POLE (marked -FP): 1/8″ poles and 1/8″ separators produce shallow flux lines for holding small and thin parts.

Features:

• Made in U.S.A.
• Perfect accessories for the Sine System.
• Low profile. Can be used separately as parallel chucks or with a sine plate or compound sine plate.
• Can be used alone as a parallel chuck. The 4″ x 4″, 6″ x 6″ and 9″ x 9″ models can be used as squaring chucks.
• Made with permanent, ceramic magnets for superior holding power.Never lose their strength.
• Chucks are lubricated and sealed against dirt and liquids.
• Includes handle, side and back rails.
• 12″ x 12″ models & larger have a non-removable handle.
• The 6 x 6″ standard and fine pole models can also be bolted directly to the 6 x 6 x 4″ angle plate.
• Top plate is laminated from steel and stainless steel. Furnace brazed into one solid piece and precision ground.
• Steel bottom plate, hardened and ground.
• Front mounted on-off handle is removable. Eliminates interference.
• “Partial On” for holding parts prone to distortion.
• One end rail and one back rail plus 4 mounting bolts included.

Note: These chucks are for use on SineSet sine plates and for squaring purposes. They do not have mounting provisions for use on surface grinders.

Specifications:

* Ideal for use as Parallel as well as Squaring Chucks.
