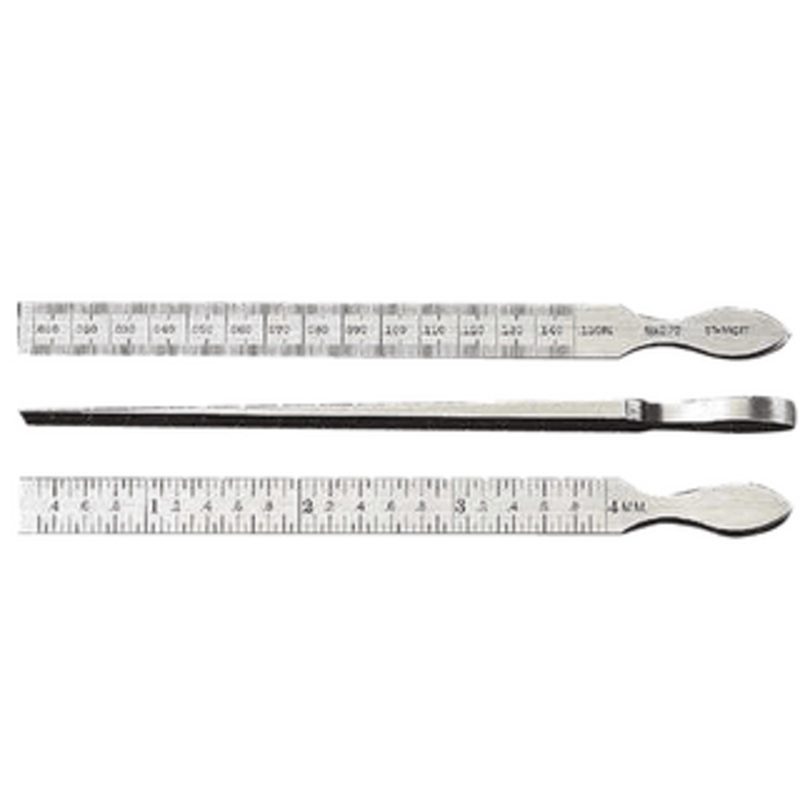

Starrett Taper Gage – 270

51292

Taper Gage measures hole and slot sizes. It is quick to use, very accurate, and is a convenient size.

• Very useful tool for bearing work and for gaging slots
• Made of quality tool steel and accurately tapered throughout entire length for quick and convenient measuring
• 11mm (7/16″) wide by 160mm (6-1/4″) long
• Can be used as a precision shim
• One side graduated from .010″ to .150″ in thousandths of an inch; the reverse side from 0.3mm to 4mm in one-twentieth of a mm (0.05mm)
• Range (in): 010-.150″
• Range (mm): 0.3-4mm
• Graduations (in): .001″
• Graduations (mm): 0.05mm
• Length (in): 6-1/4″
• Length (mm): 160mm
