SPI Ultrasonic Thickness Gage, for Measuring Metallic & Non-Metallic Materials

0.1mm to 8″ Measurement, 0.1mm Resolution Electronic Thickness Gage
Accurate up to 0.01mm

A hand held microprocessor-controlled thickness gage specifically designed for measuring metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave-conductor with parallel top and bottom surfaces.

Features:

• Used in many areas of industry.
• Extremely easy to use.
• Can perform precise measurements on various types of raw materials, component parts and assembled machinery.
• Can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion.
• After a simple calibration to a known thickness or sound velocity, the gauge will give accurate readings in inches or millimeters.

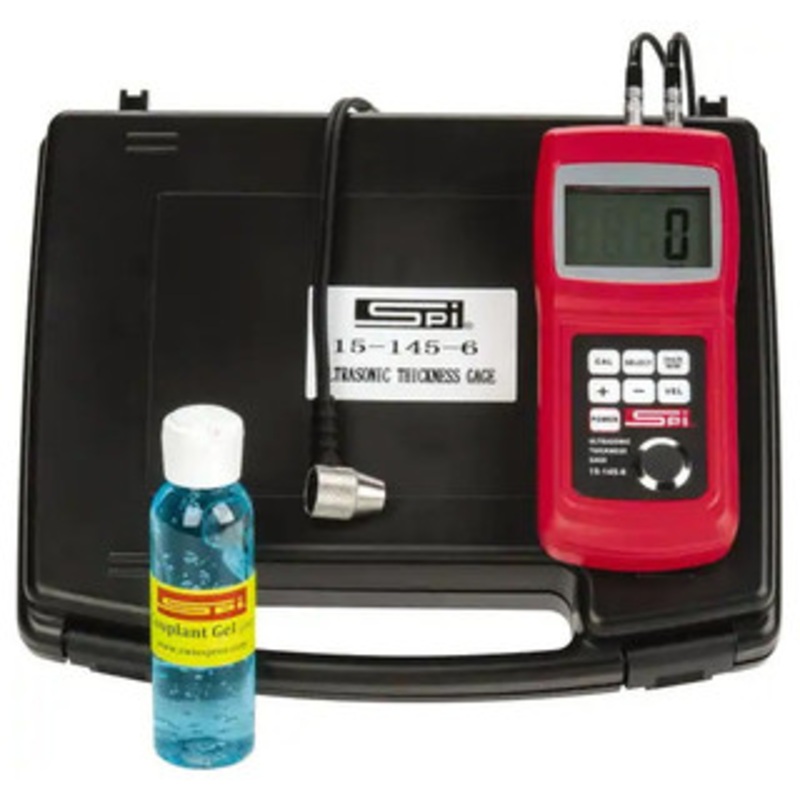

• Includes: base unit (w/built-in calibration block), 5 MHz dual sensor probe, 2 oz. bottle of couplant gel, AAA battery set, operation manual and carrying case.

Specifications:

Display Type Large 4-Digit LCD Min. Display Unit 0.001″/0.1 mm Measuring Range 0.04 – 8″ (0.1 mm – 200 mm) in steel
w/standard probe (other values depending on material) Low Limit Steel Pipes Min. dia. 0.8 x 0.1″ (20 x 3 mm) Display Accuracy 0.01 mm Sound Velocity Range 1640 – 29,527 Ft./S (500 – 9000 m/s) Operating Temperature 32 to 122F (-5 to 40C) Frequency 5 MHz Update Range 4 Hz Power Supply 1.5V AAA alkaline batteries (4 pc.) Battery Life Approx. 250 hours/battery set Dimensions 4.9 x 2.6 x 0.9″ (161 x 69 x 32 mm) Weight 0.7 Lbs. (300g) Operating Current <20 mA (3V)
