100% Copper
Thermally-Protected

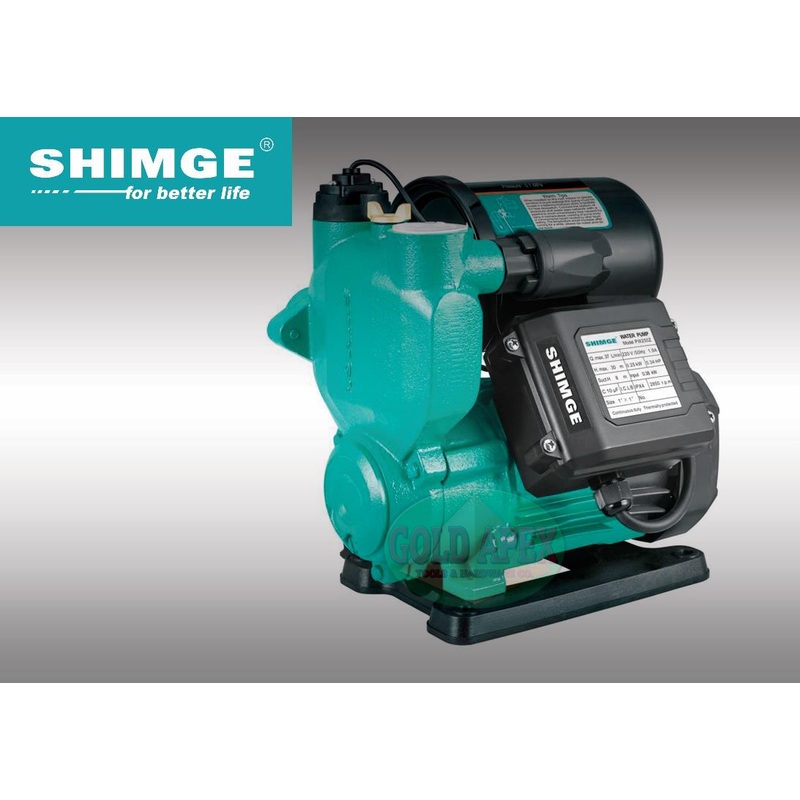

A self-priming peripheral pump for both hot and cold water. Advanced structure with lower noise. Intelligent control by both flow sensor and pressure sensor, which is convenient .

Application fields

• Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
• Widely used in household water supply, well water pumping, tap water pressure, water tower’s supply, solar or hot water systems pressure, etc.

Operating condition

• Suction lift up to 8m
• Liquid temperature =+90C
• Environment temperature = +40C
• Max. working pressure: 5bar

Features and advantages

• A self-priming peripheral pump for both hot and cold water.
• Advanced structure with lower noise.
• Intelligent control by both flow sensor and pressure sensor, which is convenient .

Materials

• Pump body: Cast iron with stainless steel insert
• Motor casing: Aluminum
• Impeller: Brass
• Shaft:Welded by SUS304 and Cs45#
• Mechanical seal:Ceramic/Graphite/NBR
• Copper winding

Specifications
