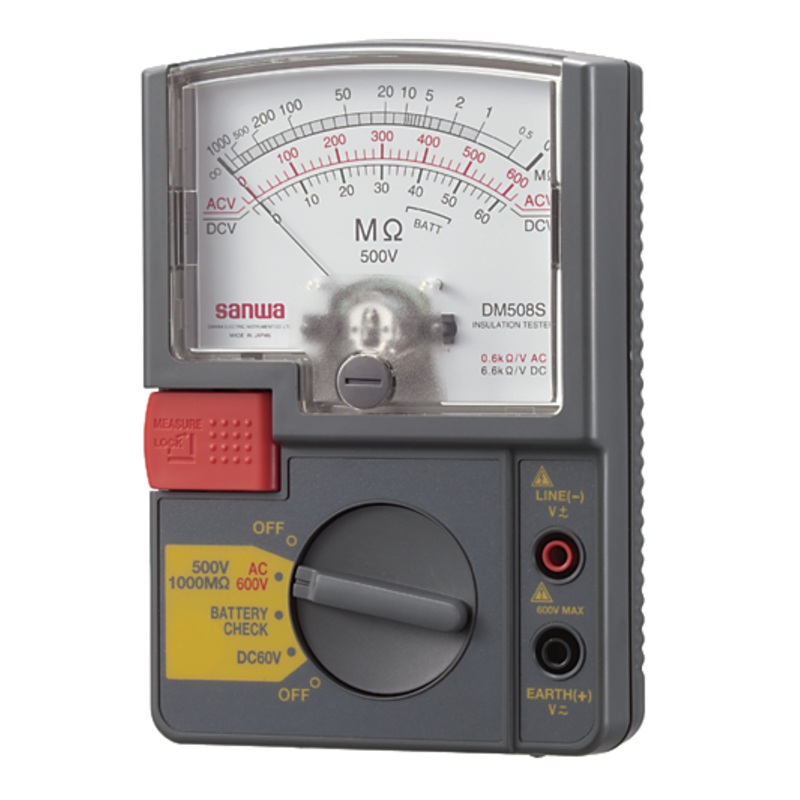

Sanwa DM508S Analog Insulation Tester

This instrument is a DC insulation resistance tester to measurethe insulation resistance of electric lines and electric equipment.Test voltage DC500V1000MOne-shot or continuous measurement push switchDCV measurement range(DC60V)Auto discharge functionInner

$85.00 $170.00

This instrument is a DC insulation resistance tester to measurethe insulation resistance of electric lines and electric equipment.

Test voltage DC500V1000M
One-shot or continuous measurement push switch
DCV measurement range(DC60V)
Auto discharge function
Inner battery check range
ACV measurement range

Specifications

	Measuring range	Best accuracy
M (InsulationResistance)	500V/1000M	1st effective measurement range : 5% of full scale 2nd effective measurement range : 10% of full scale
DCV	60V	5% of full scale
ACV	600V	5% of full scale
Rated measuring current	11.2mA

Meter type	Internal magnet, Taut-band meter(24A)
AC rectifier form	Half-wave rectification(Mean value indication rms value converted)
Accuracy assurance temperature / humidity	235 75%RH or below No condensation
Operating temperatur / humidity	043 80%RH or below No condensation
Storage temperature / humidity	-1050 70%RH or below No condensation
Operating environment	Altitude 2000m or less, environmental pollution degree II
Power consumption	Approx. 2.0W2.8W(At 500V/100M range)
Battery consumption	Checked by BATTERY CHECK range
IP rate	IP20
Battery	6LR61(9V) x 1
Size / Mass Standard accessories included	H144 x W99 x D43mm / 310g Test lead(TL-508Sa), Carrying case(C-08S), Instruction manual
