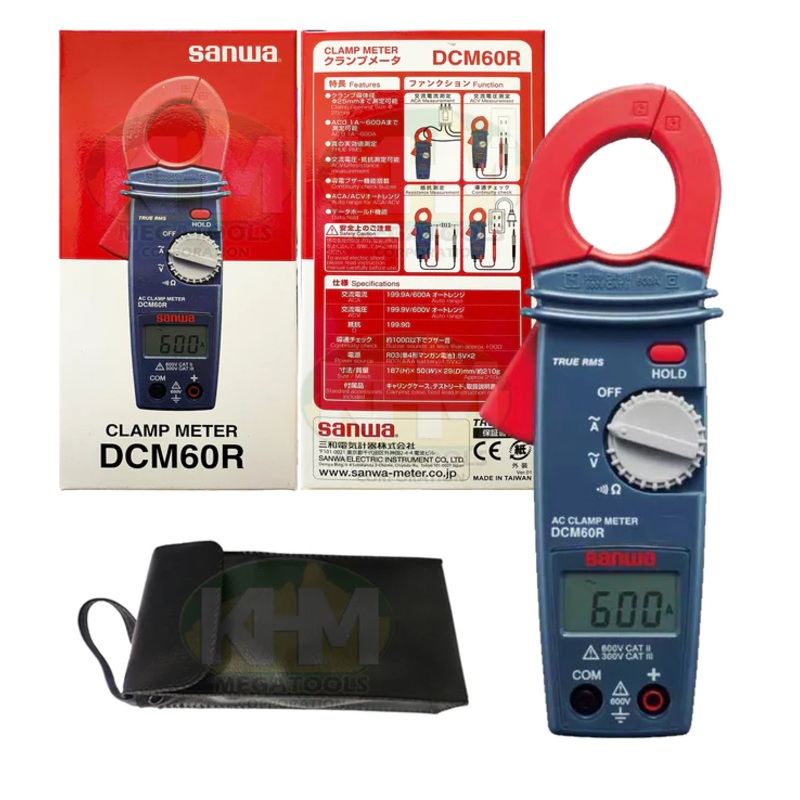

Sanwa DCM60R Digital Clamp Meter / Tester

Sanwa DCM60R Digital Clamp Meter / Tester

Sanwa DCM60R Digital Clamp Meter / TesterLow cost & DMM functionsTrue RMSMeasurable AC 0.1A600AACV & Resistance measurementSmall design & easy to carryData holdContinuity check buzzerSampling rate: approx.2 times / sec.AC frequency bandwidth: 50400HzSafety

$52.00 $103.99
SKU: F82974137089 Category:

Sanwa DCM60R Digital Clamp Meter / Tester

Low cost & DMM functions

  • True RMS
  • Measurable AC 0.1A600A
  • ACV & Resistance measurement
  • Small design & easy to carry
  • Data hold
  • Continuity check buzzer

Sampling rate: approx.2 times / sec.
AC frequency bandwidth: 50400Hz
Safety: IEC61010-1,
IEC61010-2-030 CAT.III300V /CAT.II600V,
IEC61010-2-032, IEC61010-2-033, IEC61010-31

DCM60R Measuring range Best accuracy Resolution
ACA 199.9/600A (2%+5)(5060Hz) 0.1A
(2.9%+5)(60400Hz)
ACV 199.9/600V (1.5%+5)(50400Hz) 0.1V
Resistance 199.9 (1.0%+8) 0.1
Continuity Buzzer sounds at less than approx. 100 Open voltage : approx.1.0V
Bandwidth 50400Hz
Display 1999
Clamp diameter/ 25mm / 10 x 30mm
Conductor size
Battery R03 x 2
Size / Mass H187 x W50 x D29mm / approx. 210g
Standard accessories included Test lead(TL-21a), Carrying case(C-DCM60L), Instruction manual
