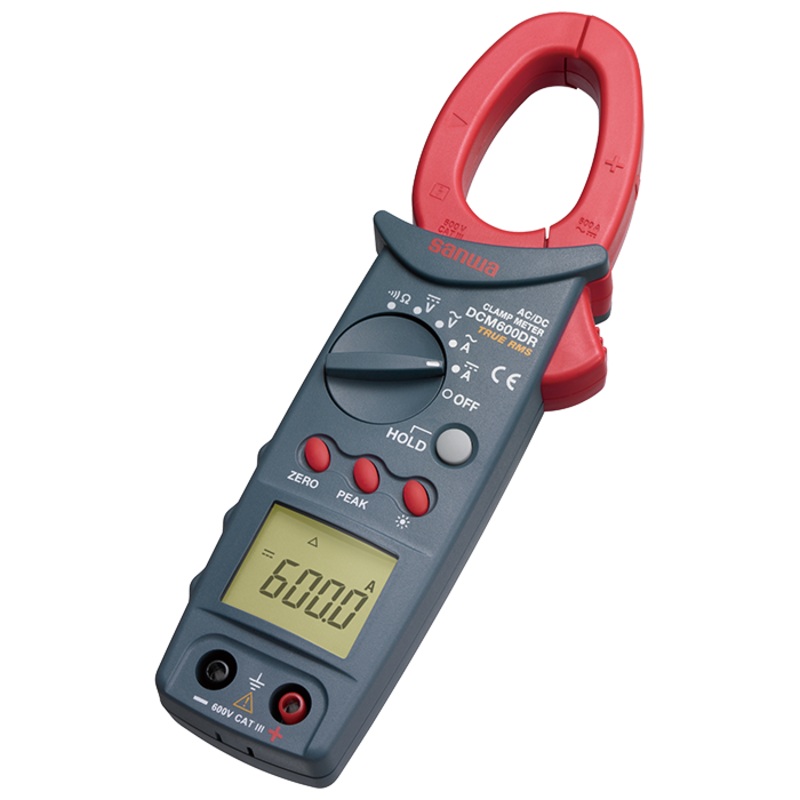

Sanwa DCM600DR Digital Clamp Meter / Tester

Sanwa DCM600DR Digital Clamp Meter / Tester

Suitable for maintenance of vehicle, hybrid vehicle, EV & DMM functionsAC/DC current measurable max. 600ATrue RMSPeak hold (Interval: 1ms) [When the peak button is pressed, the measuring range will be fixed to the 60A range.Relative value measurementData h

$148.00 $314.00
SKU: F82974141272 Category:

Suitable for maintenance of vehicle, hybrid vehicle, EV & DMM functions

  • AC/DC current measurable max. 600A
  • True RMS
  • Peak hold (Interval: 1ms) [When the peak button is pressed, the measuring range will be fixed to the 60A range.
  • Relative value measurement
  • Data hold, Auto power save
  • LCD with back light

Specifications

Function Measuring range Best accuracy Resolution
DCA 60/600A (2%+5) 0.01A
ACA 60/600A (2%+5) 0.01A
DCV 600V (1%+2) 0.1V
ACV 600V (1.2%+5) 0.1V
Resistance 999.9 (1%+7) 0.1
Continuity Buzzer sounds at less than 40 Open voltage: approx. 2.9V
Bandwidth 50-500Hz
Display 6000
Clamp diameter/Conductor size 30mm/1050mm
Battery LR032
Battery life Approx. 40 hrs. (Backlight off)
Size/Mass H208W69D38mm/Approx. 260g
Standard Accessories Included Test Lead (TL-23a), carrying case (C-DCM660), Instruction Manual
