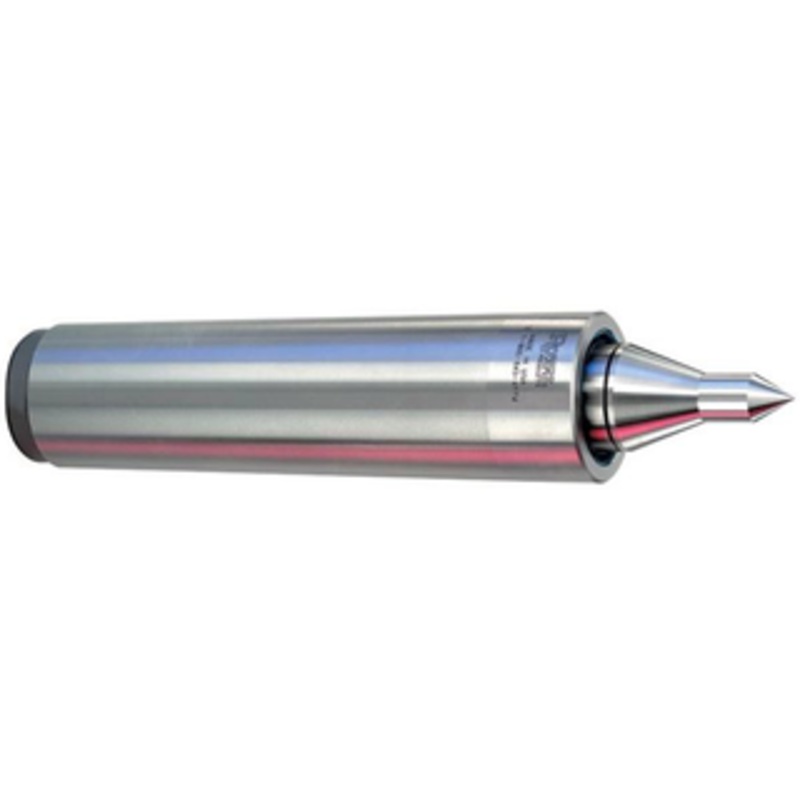

Royal 5MT Extended CNC Point Spring Type Live Center 4500 RPM 10535

• 0.00005″ TIR guaranteed.
• Ultra low-profile body provides outstanding tool clearance.
• Unique spring-loaded design compensates for thermal expansion of the workpiece by allowing the point to slide axially as the part grows.
• A series of heavy disk springs keep the point firmly seated in the center-hole of the workpiece.
• Dual roller bearings provide solid radial load capacities.
• Axial loads are handled by a special thrust bearing located between the point and springs.
• Body and point are hardened for wear resistance and long life.
• Bearings are protected from coolant and chips by a neoprene seal.
• Extended point provides tool clearance for CNC applications.
• Made in the U.S.A.
