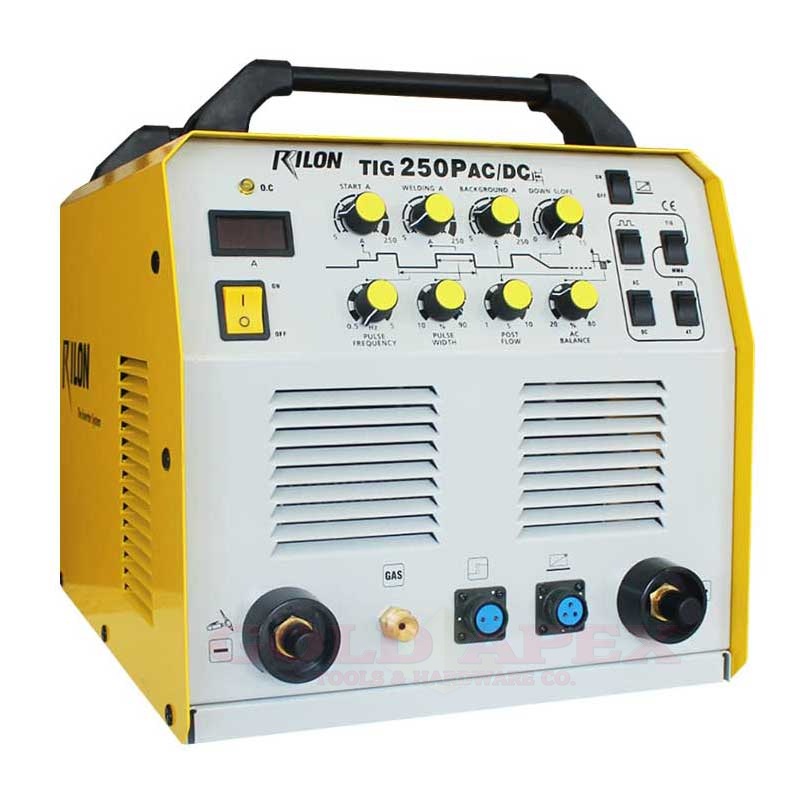

Name: Rilon TIG250P AC/DC Inverter Welding Machine (TIG/ARC)
SKU: F82974138547
Availability: InStock

Sale!

Rilon TIG250P AC/DC Inverter Welding Machine (TIG/ARC)

Specifications:AC/DC250 Amps2in1 - TIG/ARCPulseInclusions:Tig Torch SetTechnical DataPower voltage1ph AC220V15%Frequency (Hz)50/60Rated input current (A)TIG : 36.5MMA: 35.4Output current (A)TIG: 10-210MMA: 10-60No-load voltage (V)TIG: 68MMA: 60Rated output

$149.00 $792.00

Specifications:

AC/DC
250 Amps
2in1 – TIG/ARC
Pulse

Inclusions:

Tig Torch Set

Technical Data

Power voltage	1ph AC220V15%
Frequency (Hz)	50/60
Rated input current (A)	TIG : 36.5 MMA: 35.4
Output current (A)	TIG: 10-210 MMA: 10-60
No-load voltage (V)	TIG: 68 MMA: 60
Rated output voltage (V)	TIG: 18.4 MMA: 26.4
AC duty cycle (%)	20-80
Pulse duty cycle (%)	10-90
Post-flow time (S)	1-10
Pulse frequency (Hz)	0.5-5.0
Basic value current (A)	10-210
Arc initiation current (A)	10-210
Down slope time (S)	0-10
Remote control	Yes
Arc initiation way	HF
Frequency (%)	80
Duty cycle (%)	30
Power factor	0.73
Insulation grade	F
Protection grade	IP21
Weight (Kg)	20
Dimensions (mm)	476x340x402
Max. thickness (mm)	10

Picture is for reference only. Actual item design may vary.
