Model: TIG-200P

Specifications

• Power Voltage:1Ph AC220V15%
• Frequency (Hz): 50/60
• Rated Input Current (A): TIG: 28 / MMA: 43.5
• Output Current (A): 5-200
• No-load voltage (V): 56
• Rated Output Voltage (V) : TIG: 18 / MMA: 28
• AC Duty Cycle (%): 20-80
• Pulse Duty Cycle (%): 10-90
• Post-flow time (S): 0-10
• Pulse Frequency (Hz): 0.5-5.0
• Basic Value Current (A): 5-200
• ARC Initiation Current (A): 5-200
• Attenuation time (S): 0-15
• Remote Control: yes
• ARC Initiation way: HF
• Frequency (Hz): 80
• Duty Cycle (%): 60
• Power Factor: 0.73
• Insulation Grade: F
• Protection Grade: IP21
• Max. Thickness (mm): 10

Inclusions:
4m TIG Torch Assembly
3m Cable Ground Clamp

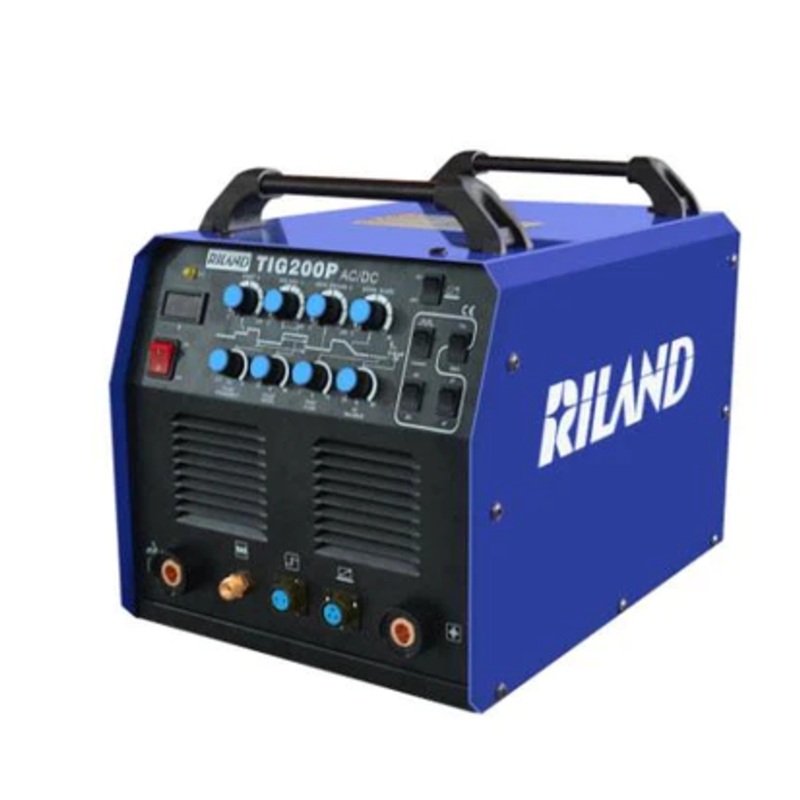

Picture is for reference only. Actual item may vary.
