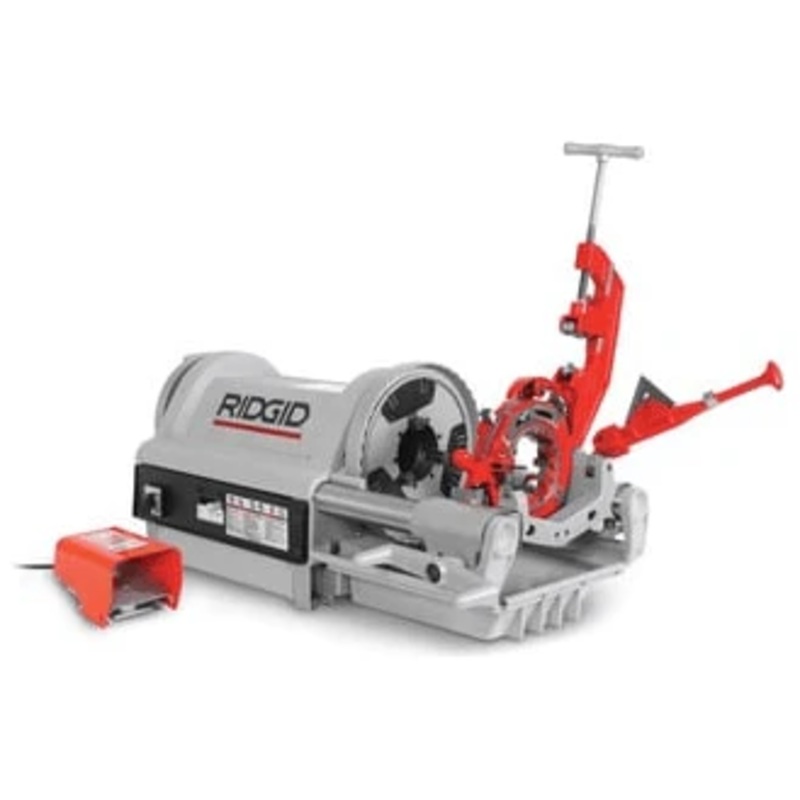

Ridgid 1224 Pipe Threading Machine
The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
- An induction motor helps minimize noise.
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
- 1/4″-2″ Universal Die Head; 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
- Constant and proper lubrication of dies and workpiece with through-head oiling.
Specifications
| Nominal Pipe Capacity |
1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threader. |
| Bolt Capacity |
1/4″-2″ (6mm-50mm). |
| Motor Control |
Reverse/off/forward, heavy-duty rotary-type and integral foot switch. |
| Gear Box |
Two-speed gear box with a 3:1 ratio. |
| Chuck |
Hammer-type with replaceable rocker-action jaw inserts. |
| Rear Centering Device |
Cam action. |
| Oiling Pump |
Self-priming, gerotor-type, automatic-reversing, constant-flow. |
| Oiling |
Through die head |
| CATALOG NUMBER |
MODEL NO. |
DESCRIPTION |
DIE HEAD |
VOLTAGE (V) |
POWER |
WEIGHT (kg) |
Price |
|
| 26097 |
1224 |
1/4″ – 4″ NPT Hammer Chuck Machine |
711/714 |
230 |
1-1/2 HP |
231 |
690,00.00 |
Stands
| CATALOG NUMBER |
MODEL NO. |
DESCRIPTION |
Price |
|
| 22563 |
– |
Steel Cabinet (200A) |
35,300.00 |
| 92457 |
100A |
100A Universal Leg & Tray Stand |
34,000.00 |
| 92462 |
150A |
150A Universal Wheel & Tray Stand |
60,350.00 |
| 92467 |
200A |
200A Universal Wheel & Cabinet Stand |
85,850.00 |
Die Heads
| CATALOG NUMBER |
MODEL NO. |
DESCRIPTION |
CAPACITY
Inch |
Price |
|
| 26132 |
711 |
711 SO Universal Right Hand Dies |
1/4 – 2 |
48,600.00 |
| 26142 |
713 |
713 1/4″ – 2″ NPT 1224 Die Head, Quick-Opening, LH |
1/4 – 2 |
50,650.00 |
| 26152 |
714 |
714 SO Receding Right Hand Dies |
2 1/2 – 4 |
81,900.00 |
| 26162 |
541 |
541 1/4″ – 1″ Bolt 1224 Die Head, Quick-Opening, RH/LH |
1/4 – 1 |
37,650.00 |
| 26167 |
542 |
542 1-1/8″ – 2″ Bolt 1224 Die Head, Quick-Opening, RH/LH |
1 1/8 – 2 |
40,100.00 |
| 55447 |
725 |
725 2-1/2 – 4 Cut Grooving Die Head |
2 1/2 – 4 |
80,150.00 |
| 55452 |
766 |
766 Blade Type Cutter |
3/4 – 4 |
139,050.00 |
| 57492 |
– |
4″ Grooving Die Set * |
– |
25,650.00 |
| 57497 |
– |
2 1/2″-3 1/2″ Grooving Die Set * |
2 1/2 – 3 1/2 |
25,650.00 |
| 57502 |
– |
4″ Grooving Bit Only * |
– |
13,450.00 |
| 57507 |
– |
2 1/2″-3 1/2″ Grooving Bit only * |
– |
12,950.00 |
| 58712 |
– |
Tool Bit |
– |
12,950.00 |
Pipe Dies
| CATALOG NUMBER |
DESCRIPTION |
CAPACITY
Inch |
Price |
|
| 26192 |
Dies. 1224 2 – 1/2″ – 4 NPT HS |
2 1/2 – 4 |
20,000.00 |
| 31827 |
1224 H.S. NPT Dies for Plastic-Coated Pipe |
2 1/2 – 4 |
22,150.00 |
| 32237 |
1224 H.S. Dies NPT for PVC |
2 1/2 – 4 |
20,200.00 |
| 33057 |
1224 H.S. Dies NPT for Stainless Steel |
2 1/2 – 4 |
20,200.00 |
| 33072 |
1224 45 Beveling Dies |
2 1/2 – 4 |
20,900.00 |
| 33077 |
1224 37 12 Beveling Dies |
2 1/2 – 4 |
20,900.00 |
| 44992 |
1224 Bevel Guide Set |
2 1/2 – 4 |
14,950.00 |
| 44997 |
1224 37 12 Bevel Bit Only |
– |
7,500.00 |
| 45002 |
1224 45 Bevel Bit Only |
– |
7,500.00 |
Accessories
| CATALOG NUMBER |
MODEL NO. |
DESCRIPTION |
Price |
|
| 51005 |
819 |
819 Nipple Chuck Complete, 1/2″ – 2″ NPT |
32,300.00 |
| 61122 |
840A |
840A Universal Drive Shaft |
37,850.00 |
| 26187 |
– |
Jaw Insert and Roll Set for PE-Coated Pipe |
16,600.00 |
| 26212 |
764 |
1/4″-4″ Wheel-Type Cutter |
36,900.00 |
| 26217 |
744 |
1/4″-4″ Blade-Type Reamer |
25,450.00 |
| 26707 |
– |
Transmission Grease, 1 Lb. |
1,250.00 |
| 34157 |
419 |
Nipple Chuck 2 1/2″ NPT |
28,350.00 |
| 34162 |
419 |
Nipple Chuck 3″ NPT |
28,350.00 |
| 34167 |
419 |
Nipple Chuck 4″ NPT |
30,650.00 |
| 34577 |
– |
Reamer Blade 1/4″ – 4″ |
12,450.00 |
