Precise Positive Stop Adjustable Blades For Self Lock Cut-Off Inserts
- Adjustable cut-off and grooving positive stop blades.
- Designed for use with standard cut-off inserts.
- They feature a “positive stop” to prevent insert drift and the blade pocket from spreading once the insert is set firmly in place.
- The insert’s cutting edge location repeats accurately as a result of this.
- Prevents insert splitting under heavy feed and shock load.
- The blade & insert geometry permits free chip flow, minimizing insert breakage due to chip build up.

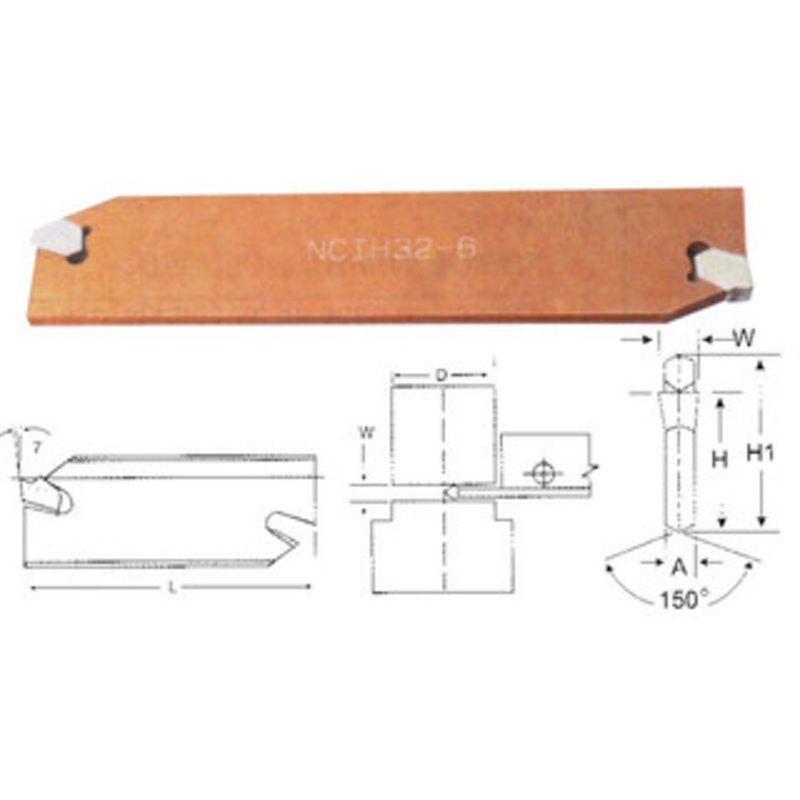

Specifications:
| Model No. |
Blade NCIH |
Length |
Width +/- .004″ |
H H-1 |
| 404-0380 |
26-3 PS |
4-5/16″ |
.120″ |
53/64″ 13/32″ |
| 404-0381 |
26-4-PS |
4-5/16″ |
.160″ |
53/64″ 1-1/32″ |
| 404-0382 |
26-5-PS |
4-5/16″ |
.187″ & .200″ |
53/64″ 1-1/32″ |
| 404-0383 |
26-6-PS |
4-5/16″ |
.250″ |
53/64″ 1-1/4″ |
| 404-0384 |
32-3-PS |
5-7/8″ |
.120″ |
63/64″ 1-1/4″ |
| 404-0385 |
32-4-PS |
5-7/8″ |
.160″ |
63/64″ 1-1/4″ |
| 404-0386 |
32-5-PS |
5-7/8″ |
.187″ & .200″ |
63/64″ 1-1/4″ |
| 404-0387 |
32-6-PS |
5-7/8″ |
.250″ |
63/64″ 1-1/4″ |
