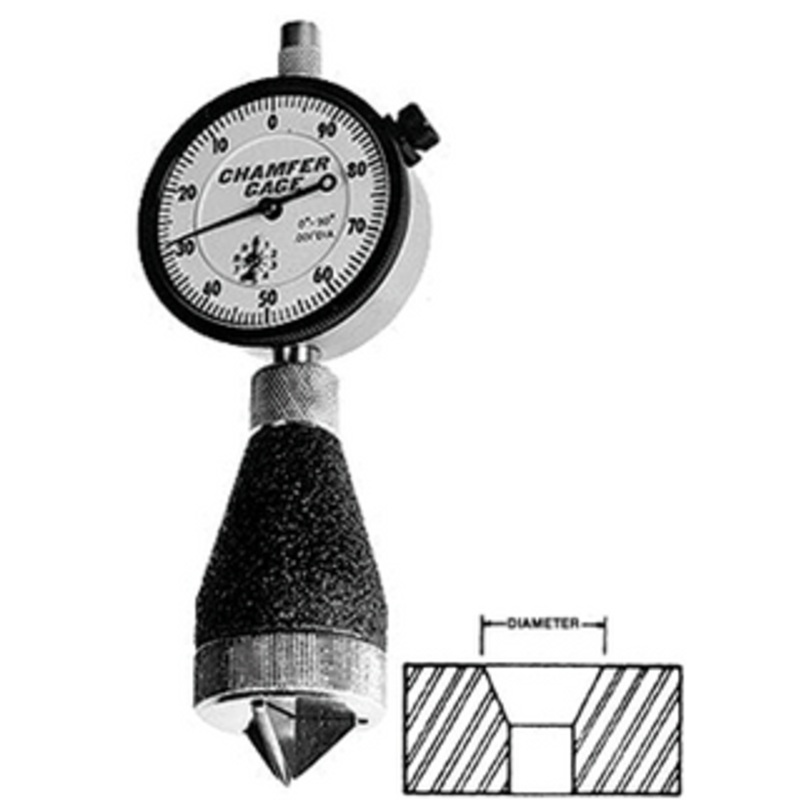

Precise Chamfer Gages

• Instantly measures top diameter of tapered holes
• Measure the top (major) diameter of a chamfer, countersink, center drill, or tapered hole
• Press the spring loaded, conically ground, precision 3-blade Gaging Plunger into the chamfer or countersink and instantly read the dial in .001″ or .01mm/.022mm diameter increments
• The Chamfer Gage is a direct reading gage. No setting, Master (Standard) or look-up chart is required.
• Available in two angular ranges: 0 – 90, 90 – 127

Guaranteed Accuracy:

within .002″ in 90 – 127 models
