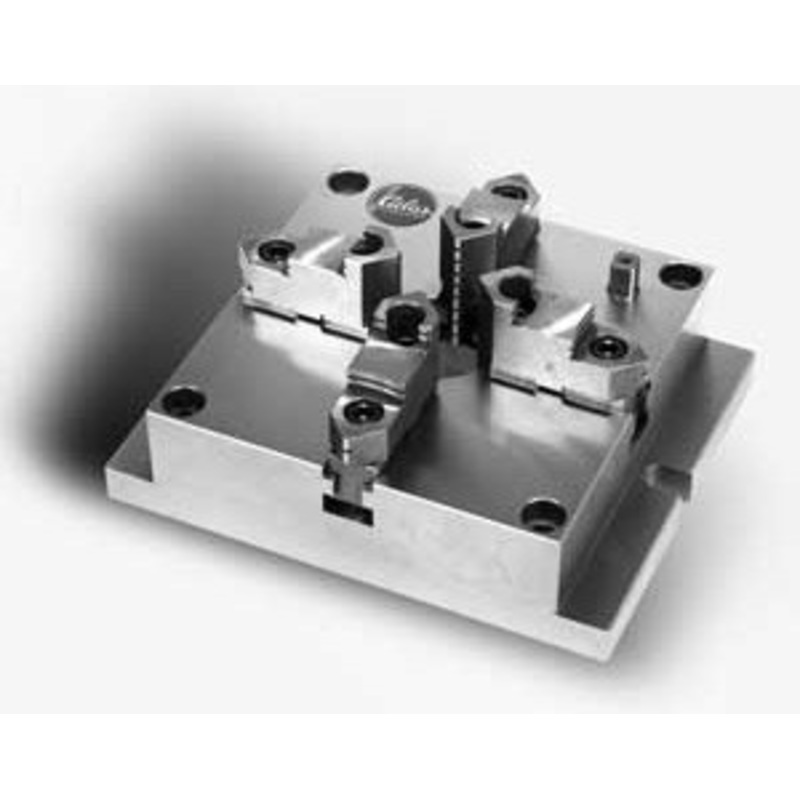

PBA Super Thin Low Profile Square Chuck – MCA8

Features:

• Universal scroll chuck design
• End-surface clamping design enables fast efficient mounting of several chucks to a worktable
• Super thin design allows greater Z-axis machining
• Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
• Milled key-slots on the base plate allows accurate quick changing of the chucks
• Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
• American Standard, hard top and master jaws
• One year warranty

Specifications:

Super Thin Low Profile Square Chucks Gripping Capacity Model Approx Weight External Internal Min. Max. Min. Max. MCA8 41 lbs .20″ 6.38″ 2.44″ 6.34″

Dimensional Data (in inches)

Model MCA8 A 9.84 B 2.56 C 0.79 D 6.3 E 2.17 F 0.24 G 4-M12
x1.7P H 3.23 J 1.1 K 1.69 L .669* M 6.85 N 7.87 P 6.85 Q 7.87 R 3.27 S 0.71

* Square Drive

See all PBA Super Thin Low Profile Square Chucks, Series MCA
