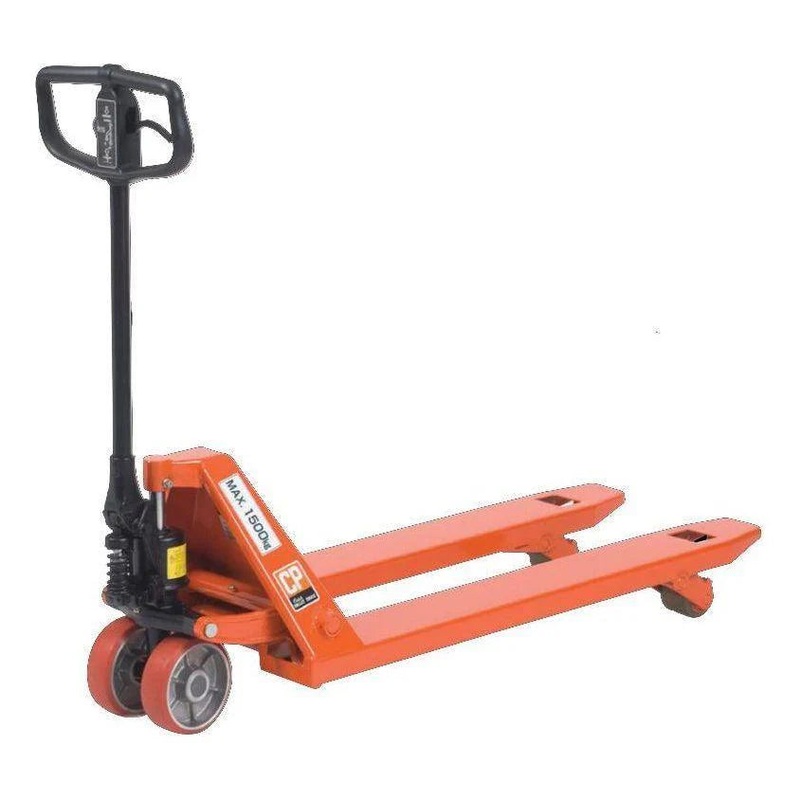

Name: OPK CP Series Hand Pallet Truck (Standard)
SKU: F82974140889
Availability: InStock

Sale!

OPK CP Series Hand Pallet Truck (Standard)

OPK CP Series Hand Pallet Truck (Standard)Body: High Tensile Steel PlateWheels: PolyurethaneAdopts a resin handle that is lightweight, feels good, and has good functionality.The lighter weight of the steering wheel makes handling smoother.Built-in automati

$149.00 $1,186.00

Model:

OPK CP Series Hand Pallet Truck (Standard)

Body: High Tensile Steel Plate
Wheels: Polyurethane
Adopts a resin handle that is lightweight, feels good, and has good functionality.
The lighter weight of the steering wheel makes handling smoother.
Built-in automatic load check valve to prevent overloading during lift.
Built-in valve cleaning device to maintain normal valve condition.
OPK’s original no-packing hydraulic pump and one-touch neutral lever make it easy to run and operate even under load.

Model	Capacity	Price
CP-7S-100	700 kgs	65,900.00
CP-15S-115	1500 kgs (1.5 tons)	65,900.00
CP-20S-115	2000 kgs (2 tons)	67,400.00
CP-20L-122	2000 kgs (2 tons)	69,300.00
CP-25S-107	2500 kgs (2.5 tons)	70,000.00
CP-25L-122	2500 kgs (2.5 tons)	72,400.00
CP-30S-107	3000 kgs (3 tons)	118,400.00
CP-30L-122	3000 kgs (3 tons)	120,500.00

Model	Frame: (W x L) mm	Lifting Height (mm)
CP-7S-100	520 x 1000mm	65~185mm
CP-15S-115	520 x 1150mm	80~200mm
CP-20S-115	520 x 1150mm	80~200mm
CP-20L-122	685 x 1220mm	80~200mm
CP-25S-107	520 x 1070mm	80~200mm
CP-25L-122	685 x 1220mm	80~200mm
CP-30S-107	520 x 1070mm	85~205mm
CP-30L-122	685 x 1220mm	85~205mm

Model	Maximum load capacity (kg)	Lowest position (mm)	Highest (mm)
H1	H2
CP-7S-100	700	65.00	185
CP-15S-115	1500	80.00	200
CP-20S-115	2000	80.00	200
CP-20L-122	2000	80.00	200
CP-25S-107	2500	80.00	200
CP-25L-122
CP-30S-107	3000	85.00	205.00
CP-30L-122

Model	Fork (mm)
Outer width	length	Inner width
W1	L1	L2	L3	W2
CP-7S-100	520	1000	920.00	775	280
CP-15S-115	520	1150	1030	870	220
CP-20S-115	520	1150	1030	870	220
CP-20L-122	685	1220	1100	940	385
CP-25S-107	520	1070	950	790	220
CP-25L-122	685	1220	1100	940	385
CP-30S-107	520	1070	1010	770	180
CP-30L-122	685	1220	1160	920	345

Model	Total length (mm)	Overall height (mm)	Vehicle weight (kg)
L4	H3
CP-7S-100	1390	1150	55
CP-15S-115	1560	1170	75
CP-20S-115	1560	1170	75
CP-20L-122	1630	1170	83
CP-25S-107	1480	1170	82
CP-25L-122	1630	88
CP-30S-107	1480	1170	100
CP-30L-122	1630	115

Picture is for reference only. Actual item may vary.
