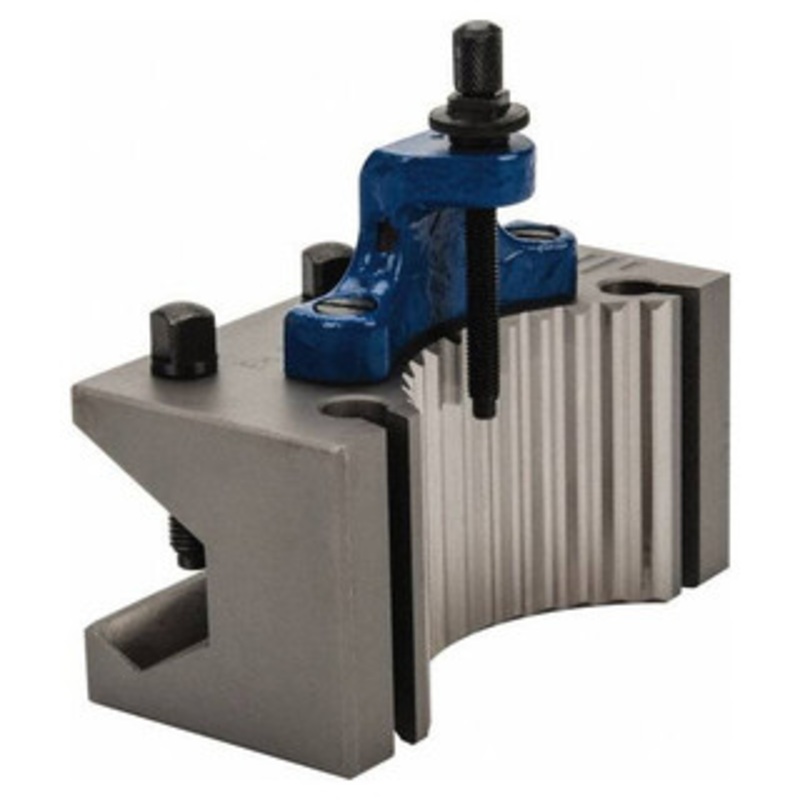

Multiquick “H” Boring Holder, Size E
71-255-4

Series D1, #D1D 40180 Tool Post Holder
180mm OAL, 40mm Max Tool Cutting Size, 95mm Centerline Height

0.0001″ Accuracy

• Swiss precision and perfection; internationally acclaimed by the leaders in industry
• All parts, toolposts and holders are manufactured from high quality chrome steel, thru hardened
• The splines of the toolpost and holders are precision ground for 0.0001″ repeat accuracy
• Cam-lock handle rigidly locks and quickly releases toolholder
• 40 different angles (every 9) are conveniently selected from position dial with marker
• No limitations as to the number and types of tools to be used
• Correct height of cutting edge is easily and accurately adjusted by a special set-screw built into each holder
• Tools can be re-ground without removal from toolholder setting remains unaltered
• Holders are interchangeable with most other brand 40 position toolposts

“H” Boring Holder

Click to Download Multiquick Full Parts Guide PDF

See all parts for the Multiquick: 40 Position Quick Change Tool Holder for all Lathes
