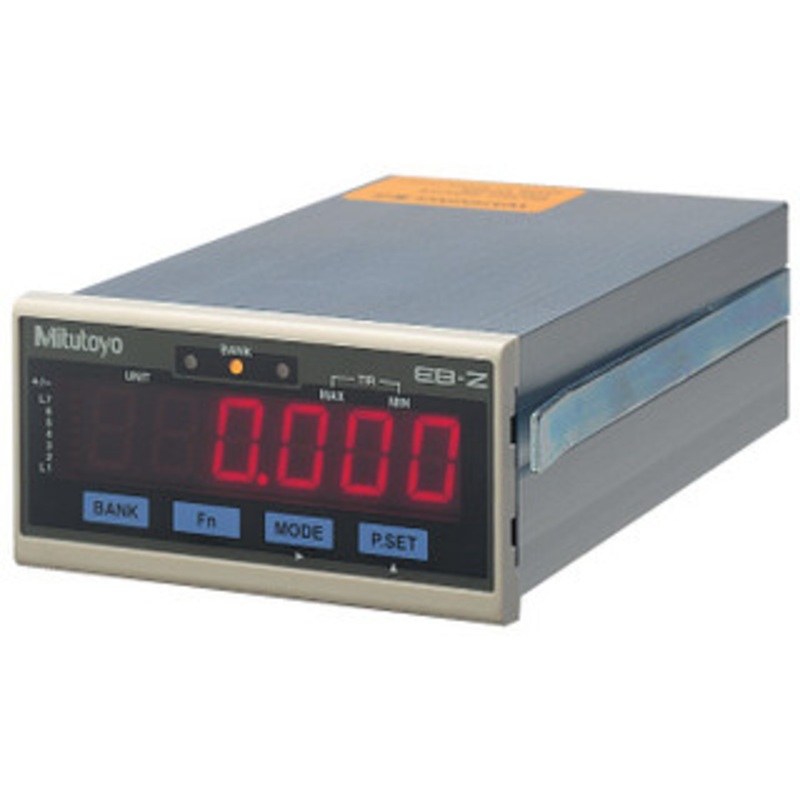

Mitutoyo EB Counter Assembly Type Display Units with Multiple Limit Setting

Function:

• Preset
• Tolerance judgment output (3/5-step, 7 kinds)
• Limit value output (2 kinds independently for each of the 7 channels)
• Peak (max., min., runout) measurement
• Diverse data output (Serial BCD, Simplified analog, Digimatic)

Optional Accessories:

• I/O output connector (with cover): No.02ADB440
• AC adapter: No.02ADN460*
• AC cable (USA): 02ZAA010*
• Terminal connecting cable: No.02ADD930*

* Included in package Order No. The tolerance values or preset values can be easily input. No.02ADF180 (with 2m cable)

• Interface:
  Serial BCD: Bit serial format, open-collector
  Analog output: 2.5V+Counting value Voltage resolution (25mV/2.5mV): Full-scale 0 to 5V
  Digimatic input/output:
• Connecting to the external switch box (No.02ADF180) makes it easy to enter tolerance limits and preset values. Note) This function is not available when the gage is connected to DP-1VR, Digimatic Mini-Processor.
• It can only be connected to DP-1VR Digimatic Mini-Processor (No.264-504-5A)
• Number of tolerance steps can be expanded by assembling EB-D counters.

Technical Details:

Display Sign plus 6 digits (Green LED) Tolerance judgment display LED display (3 steps: Amber, Green, Red / 5 steps: Amber, Amber flashing, Green, Red flashing, Red) Input/output Tolerance judgment output: L1 to L5, open-collector
Control output: Normal operation signal (NOM), open-collector
Control input: Presetting, display hold, peak value clear, tolerance judgment BANK switch, open-collector or novoltage contact signal (with/without contact point)
Rating Power supply voltage 12 – 24V DC
Power consumption 6W or less (50mA max.)
Ensure at least 1A is available per unit.
Operating temperature range 0 to 40C (RH 20 to 80%, no condensation)/ -10 to 50C (RH 20 to 80%, no condensation External dimensions 96 (W) x 48 (H) x 156 (D) mm

Specifications:

Order No.(counter only) 542-092-2 542-093-2 542-094-2 Package No.(counter w/AC Adapter) 64PKA134 64PKA135 64PKA136 Model EB-11P EB-11D EB-11Z Applicable gage head LGF, LGK, LGE, LGB
(not compatible with reference point or sine wave output type models) LGS, LGD, LGD-M LGF with origin point mark No. of gage input 1 Quantizing error 1 count Applicable input Differential square-wave Digimatic code (SPC) Differential square-wave w/origin point mark Resolution .0005, .0001, .00005, .000005″ /
0.01, 0.005, 0.001, 0.0005mm .0005, .0001, .00005″ /
0.01, 0.001mm .0005, .0001, .00005, .000005″ /
0.01, 0.005, 0.001, 0.0005mm Tolerance judgment display LED display
3 steps: Amber, Green, Red
5 steps: Amber, Amber flash, Green, Red flash, Red)

Model EB-11P for use with:

• Mitutoyo Linear Gages LGF Series 542
• Mitutoyo Linear Gages LGF, High Resolution, Robust Series 542

Model EB-11Z for use with:

• Mitutoyo Linear Gages LGF-Z with Origin Point Mark Series 542
