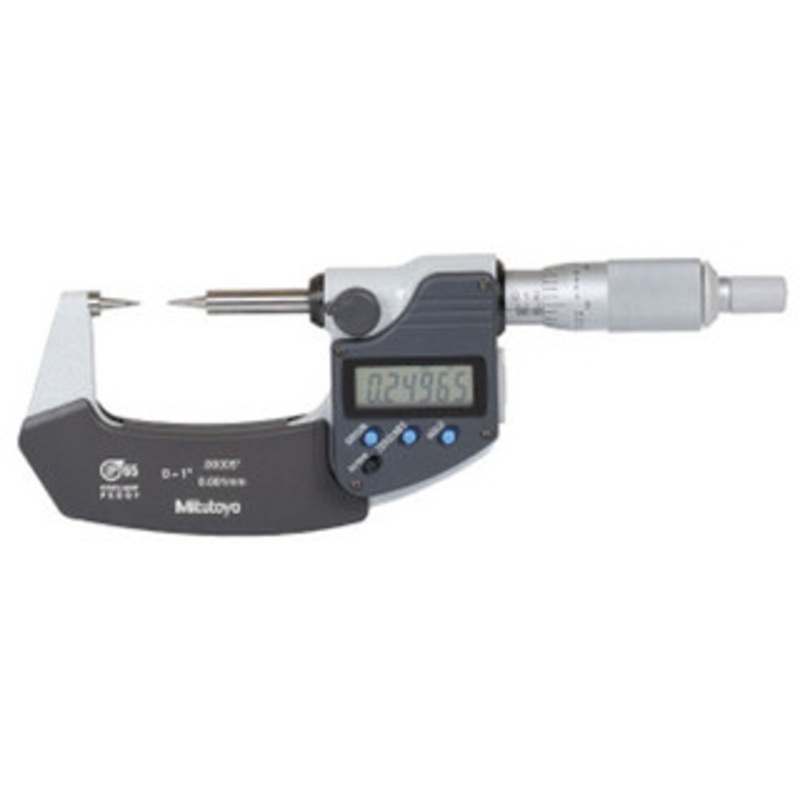

Mitutoyo Digital Point Micrometer, 0-1″/0 -25.4mm – 342-361

Features:

• IP65 water/dust protection (Series 342)
• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions
• 15 degree and 30 degree measuring points are available
• The measuring points have approximately 0.3mm / .012 radius
• With Ratchet Stop for constant force
• With SPC output (Series 342)
• With digit counter (Series 142)
• With a standard bar except 0 – 1″ and 0 – 25mm model
• Supplied in fitted plastic case

Function of Digital Model:

• Origin-set, Zero / ABS, Data hold, inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, Counting value composition error

Optional Accessories for Digital Model:

• 05CZA662: SPC cable with data switch (40″ / 1m)
• 05CZA663: SPC cable with data switch (80″ / 2m)

See all Mitutoyo Mechanical & Digital Point Micrometers with SPC Output
