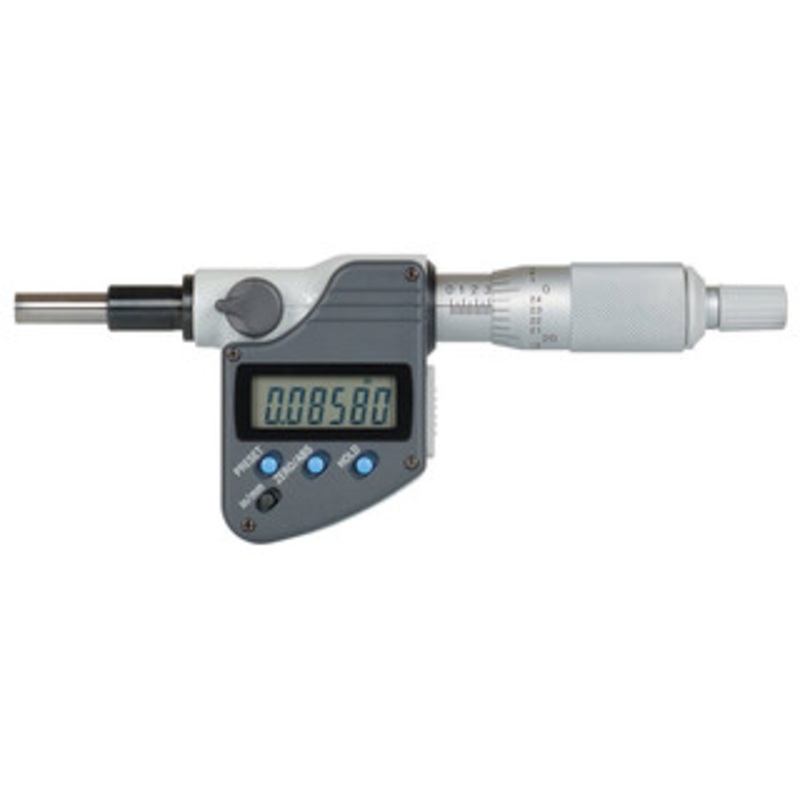

Mitutoyo Digimatic Micrometer Head, Series 350 – 350-351-10

Non-rotating device: 350-261-10, 350-361-10

The non-rotating device provides no radial torsion on the workpiece surface so that workpiece wear and deformation are minimized.

Technical Data:

• Accuracy*
  2m Metric model
  .0001″ Inch / Metric model
  * Excluding quantizing error
• Resolution: 0.001mm or .00005″/0.001mm
• Display: LCD
• Battery: SR44 (1 pc) 938882
• Battery life: Approx. 3 years under normal use
• Dust/Water protection level: IP65
  350-281-10, 350-382-10, 350-283-10, 350-284-10, 350-261-10
  350-381-10, 350-382-10, 350-383-10, 350-384-10, 350-361-10

Function:

• Preset, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
• Function Lock
• 2 Presets

Optional Accessories:

• 05CZA662: SPC cable with data switch (1m / 40″)
• 05CZA663: SPC cable with data switch (2m / 80″)
• 64PPP035:Stem Bushing (.375″ ID/.709″ OD)

See all Mitutoyo Digimatic Micrometer Heads, Series 350
