Mitutoyo Digimatic Carbon Fiber Caliper, Series 552, 0-24″ w/ Ceramic Jaws – 552-166-10

Features:

• Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics)in the beam and jaws
• Highly durable and easy to handle
• The range of applications can be expanded by using the optional attachments
• Direct readout of ID measurements from the LCD (Offset value can be set easily by pressing the Offset key)
• Preset function for setting a desired starting point
• With SPC data output
• Special model available with ceramic jaws which are suitable for measuring abrasive and magnetic products

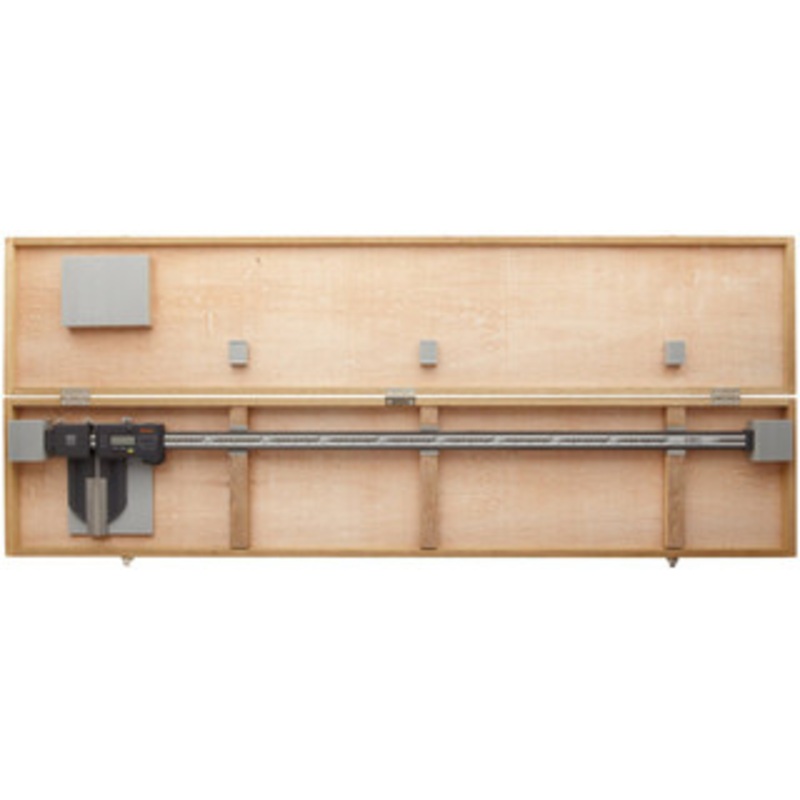

• Supplied in fitted wooden case

Technical Data:

• Accuracy: Refer to the list of specifications
• Resolution: 0.01mm or .0005″/0.01mm
• Display: LCD
• Length standard: Electrostatic capacitance type linear encoder
• Max. response speed: 1600mm/s
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3,000 hours in continuous use

Function:

• Origin-set, Zero-setting, Presetting, Offsetting, Data hold, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Optional Accessories:

• 05CZA624:SPC cable with data switch(40″ / 1m)
• 05CZA625:SPC cable with data switch (80″ / 2m)
• 914055: Centerline attachments (mm)*
• 914056: Centerline attachments (inch)*
• 914057: Pointed ID measuring attachments (mm)*
• 914058: Pointed ID measuring attachments (inch)*
• 914053: Attachment clamps (for models up to 600mm/24″ range)
• 914054: Attachment clamps (for models over 600mm/24″ range)

* Attachment clamps are required and not available for long jaw type

See all Mitutoyo Digimatic Carbon Fiber Calipers, Series 552 with Optional Jaw Attachments
