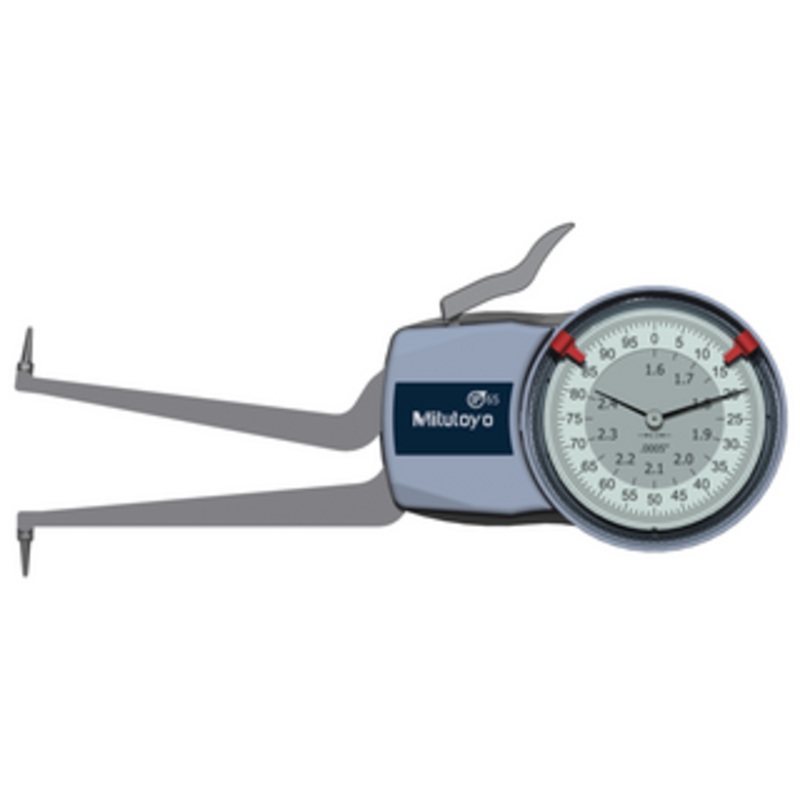

Mitutoyo Dial Caliper Gage Internal Type – Series 209, 1.6 – 2.4″ Range – 209-356
SKU: 209-356
These Dial Caliper Gages are used only as comparison gages, and should not be used along with a Setting Ring micrometer. The caliper is spring loaded and makes point contact measuring pressure.
The Mitutoyo internal dial indicators utilize spring-loaded jaws to make constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements in metric or inches.
- Available in Metric and Inch models
- Available in ranges up to 120mm/7.2
- Available with different types of jaws for various application needs
- Indicator should be used in conjunction with a setting ring or micrometer
- White dial face for easier, precise measurement readings
- Crystal is glare-free with a scratch-resistant coating
- IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
- Supplied in a fitted plastic case
Specifications:
| Item Number |
Range |
Max Meas.
Depth L |
Max Groove
Depth A |
Mn. Groove
Width B |
Meas.
Contacts |
Size |
Weight |
| 209-356 |
1.6 – 2.4″ |
3.3″ |
0.31″ |
0.06″ |
B |
1mm |
200g |
See all Mitutoyo Dial Caliper Gages Internal Type – Series 209
