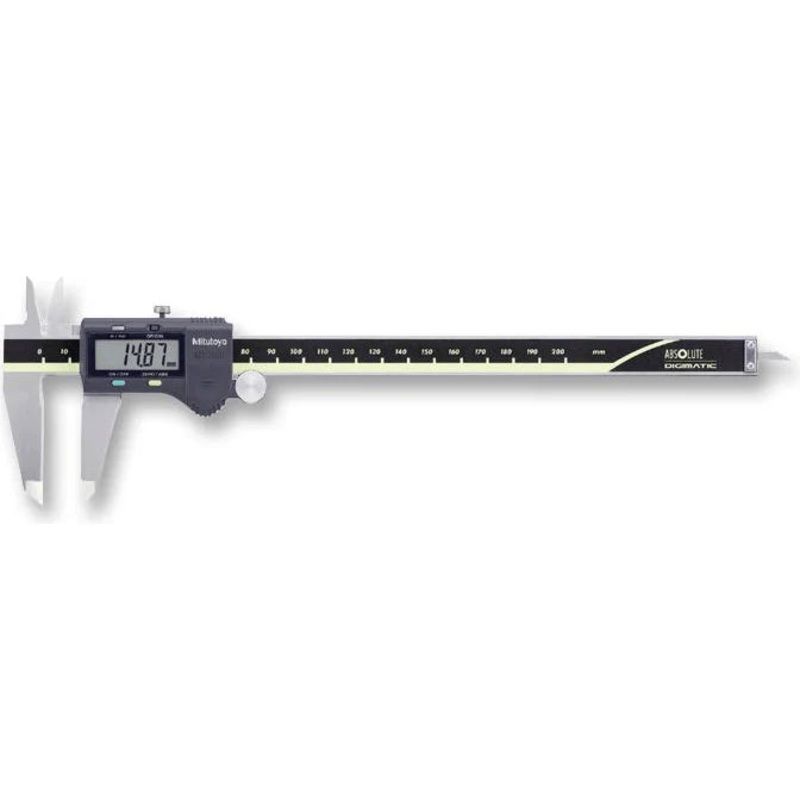

Mitutoyo CD-6C Digimatic (Digital) Caliper ‘MyCAL ABSOLUTE’ 6″ [500-171-30]
SERIES 500 with exclusive ABSOLUTE Encoder Technology

A built-in ABS (absolute) scale means that these calipers are ready to use immediatelyafter power-on without origin resetting – just like using a vernier caliper .

The 500 series from Mitutoyo are digimatic calipers with absolute encoders with thumb roller for reliable measurements. These calipers can be used without concern for contamination on the scale during measurement and offers special function which allows to always remembering its measuring position even after the gage has been switched off.

• Graduation:0.0005″/0.01mm
• Range:0-6″ / 150mm

Features

Technical Data

• Accuracy: 0.02 mm (s200 mm), 0.03 mm (s300 mm)
  (excluding quantizing error)
• Resolution: 0.01 mm or 0.0005 in I 0.01 mm
• Repeatability 0.01 mm
• Display: LCD
• Scale type: ABSOLUTE electromagnetic induction linear
  encoder
  *ABSOLUTE electrostatic capacity static linear encoder for
  0 – 300 mm I 0 – 12 inch models.
• Max. response speed: Unlimited
• Battery: SR44 (1 pc), 938882 (for initial operational checks (standard accessory)
• Battery life: Approx. 5 years under normal use (18,000hours for continuous use)

  Function
• Absolute measurement: After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.

• Incremental measurement: Display can be set to zero at any arbitrary position for comparative measurements

• Low-voltage alert: If the battery voltage becomes low, a “B” appears in the display to alert the user before measurement is no longer possible. A battery change advisory alert precedes this alert.

• Data output By using the connecting cable (option), measurement data can be output.

• Data hold: By using the data hold unit (option), the displayed value can be held. This cannot be used with the data output function.
