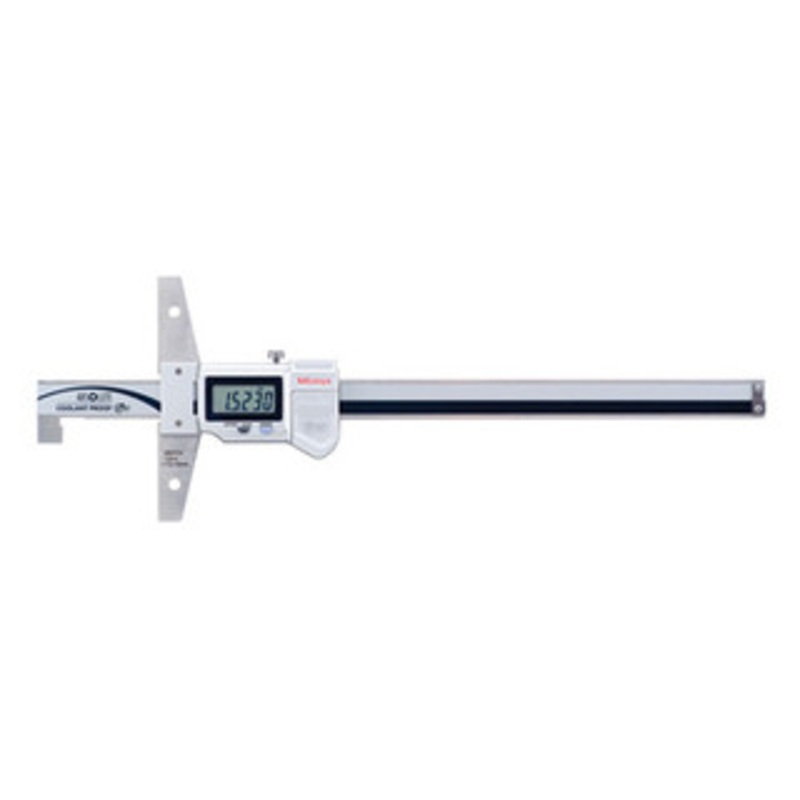

Mitutoyo ABSOLUTE Digimatic Depth Gage Series 571-Hook End Type

Features:

• ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery.
• Base and measuring faces are hardened and micro-lapped.
• Optional wider extension base are available.
• With SPC data output.

Technical Data
Resolution: .0005″/0.01mm
Repeatability: .0005″/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance
(electromagnetic induction)* type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours (3 years) under normal use
Dust/Water protection level: IP67

Function
Origin-set, Zero-setting, Automatic power on/off , Data output,
inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
