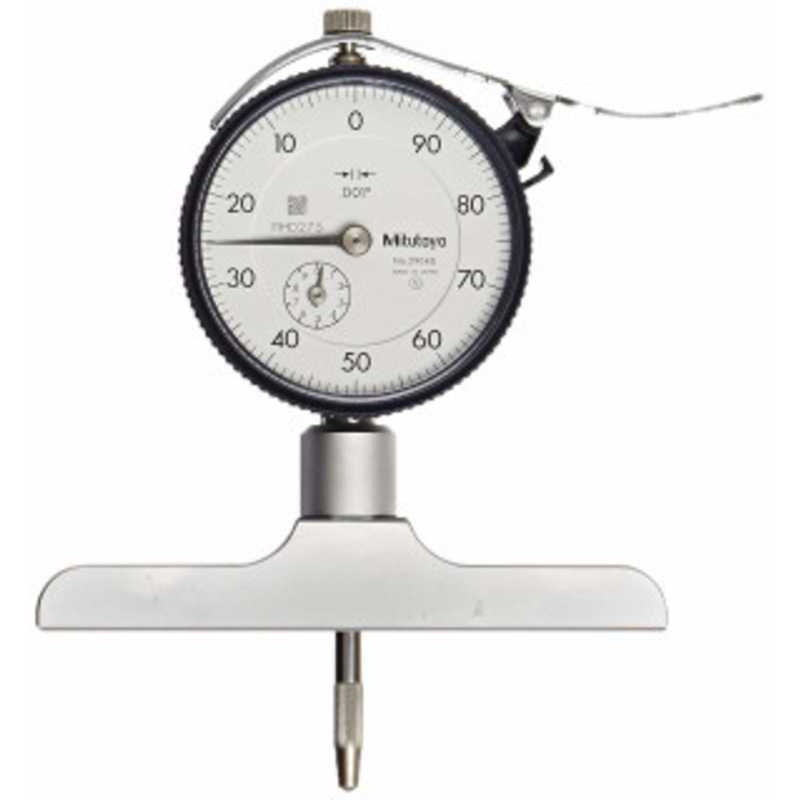

Mitutoyo, Dial Depth Gage, .001″ X 0 – 8″ Range, 4″ Base, +/-0.002″ Accuracy

7218S

Features:

• The dial indicator has precision-ground hard-chrome-plated stem with standard AGD 3/8″ diameter.
• Contact point is hardened, ground and chrome-plated steel.
• Spindle rack, pinions and pivots are hardened stainless steel to insure long wear and continuing accuracy.
• Bezel is cleanly knurled and smoothly adjustable with a clamping screw for positive settings.
• Accuracy of dial indicator exceeds Federal Specifications.
• Includes 1″, 2″, and 4″ rods. Rods can be connected for depth upto 8″.
• Thread size: #4-48″.
• Spindle lifting lever for raising and lowering spindle is maintained under spring pressure.
• Bottom surface of the base is hardened, ground and lapped for highest degree of flatness.
• The dial indicator is attached to the base by a clamping screw and is readily interchangeable with any other standard AGD dial indicator.
• Complete with fitted carrying case.
• Specifications
  • 0 to 8″ Measuring range.
  • 0.001″ graduations.
  • 1.0″ dial range.
  • Measuring force: 2.0 N or less.

UPC603908422297
