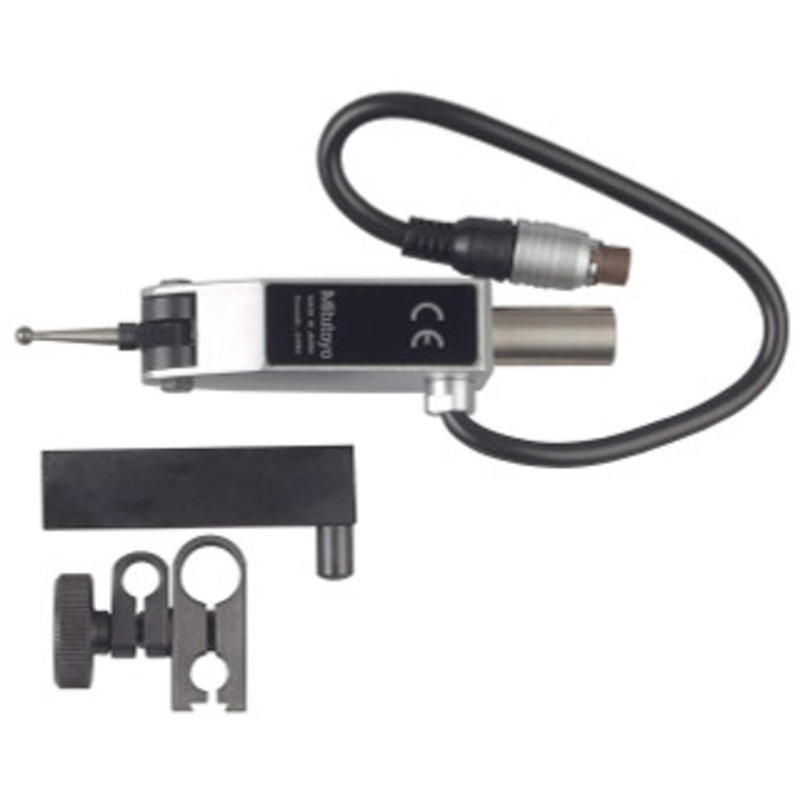

Mitutoyo 192-008 2-Direction Touch Probe
The Mitutoyo 192-008 bi-directional touch probe works with a Mitutoyo Digimatic Series 192 multi-function type height gauge to measure height, steps, and inside and outside diameters in inches, and has a measuring force of 0.4N, a 3mm carbide ball tip, a repeatability of 2m, and an overtravel of 1.5mm. The carbide ball tip provides hardness and long life. The probe comes with an integrated 150mm cable, and a holder arm and clamp.
Features:
- Bidirectional touch signal probe for Digimatic Series 192 multi-function type height gauge
- Measures height, including step heights, and inside and outside diameters in inches with a measuring force of 0.4N
- 3mm carbide ball tip for hardness and long life
- Repeatability of 2 micrometers and overtravel of 1.5mm for accurate measurements and long probe life
- Comes with an integrated 150mm cable, and a holder arm and clamp for attaching to height gauge
What’s in the Box?
- Mitutoyo 192-008 touch probe
- Holder arm
- Clamp
Specifications:
| Part Number |
192-008 |
| UPC |
603908245216 |
| Brand Name |
Mitutoyo |
| EAN |
4946368048901 , 0603908245216 |
| Inside Depth |
6.75inches |
| Item Volume |
25.13cubic_inches |
| Model Number |
192-008 |
| Number of Items |
1 |
| UNSPSC Code |
41110000 |
for use with Mitutoyo Heavy-Duty Digimatic Height Gages
