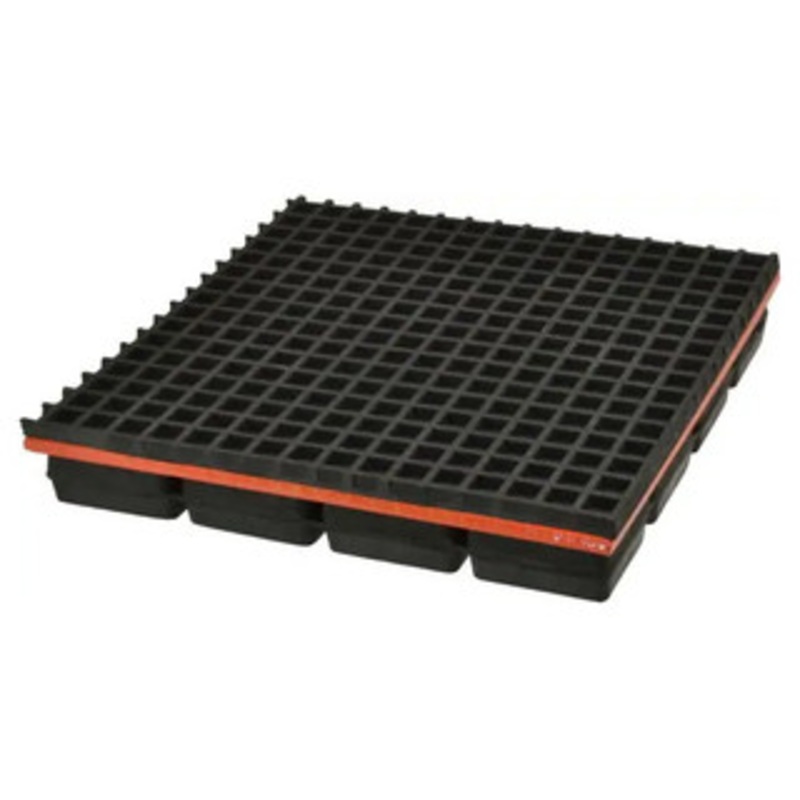

Mason Neoprene & Steel Vibration Isolation Pad #WMSW8X8, Type WMSW, 8″ x 8″ x 1-1/4″, 3200 lbs. Max Load

Mason Industries
8″ Long x 8″ Wide x 1-1/4″ Thick, Neoprene & Steel, Machinery Leveling Pad & Mat
3,200 Lb Max Load

When there is a concentrated load because of a small leg on a heavy machine or a formed sheet metal leg without a bottom surface, you can always cut a pad to size and cement your own steel plate on top.

Usually it is more convenient to buy them, so two types are offered. The WMSW has the cemented steel plate sandwiched between a super waffle pad on the bottom and a 1/4″ friction pad on the top. No bolting required. The MBSW replaces the friction pad on top with a 3/4″ diameter center hole for bolting through. A 3/4″ neoprene isolation washer cemented to a steel washer is provided as well.

• Steel plate distributes concentrated loads
• Provided with clear hole for bolting
• Flat pad on top where bolting is not required

Specifications:
