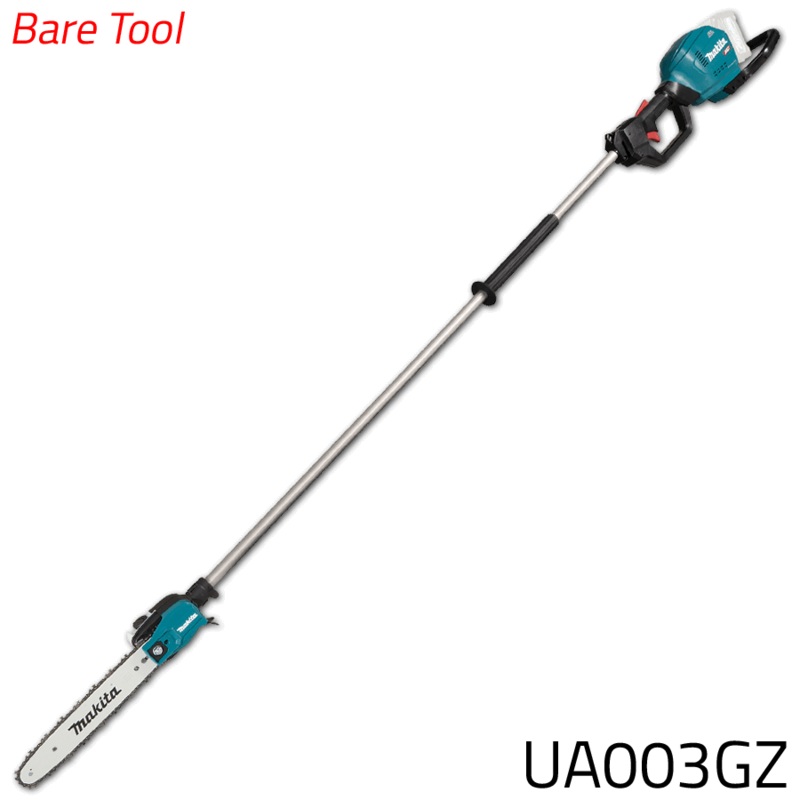

Bare Tool – Battery and charger not included
FEATURES:
- Developed based on DUA250 series as the XGT cordless alternatives to take the place of 35mL class engine pole saws
- XGT cordless alternatives to take the place of 35mL class engine pole saws
- Excellent tool balance; The motor is located in the battery housing at the bottom of the tool; This bottom-mounted motor reduces the saw head weight, allowing for ease to control the saw head for easy access to a desired cutting position and reduced user fatigue and stress
- High power BL motor delivers the same or higher operation efficiency than 35 mL class engine models
- The chain speed is the same or higher than competing models, enabling comfortable cutting
- WetGuard/IPX4; Excellent water-resistant performance
- Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows
- Anti-fall captive nut to minimize loss of nuts when replacing guide bar or saw chain
- Lightweight pole saw head for easy access to a desired cutting position and reduced operator fatigue
- The same slim design as engine pole saws provides easy maneuverability into branches
- Ideal for pruning and limbing in tall trees or hard-to-reach areas
- Retractable oil tank cap knob decreases the chance that the saw head will be snagged in branches
- Chain oil tank with high transparency allows to easily check the amount of remaining oil
- Integrated branch hook convenient for removing cut branches from trees
- Battery guard also can be used as an auxiliary grip
- Soft start feature gradually increases speed to eliminate start up shock
- Variable speed switch for optimum speed control
- Saw chain
Type: 90PX, 91PX
Gauge: 1.1mm (0.043), 1.3mm (0.050)
Pitch: 3/8
- Lock-off function prevents accidental start up
- Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance
- Cordless for reduced maintenance; no need to change engine oil or spark plug, clean air filter or drain fuel for storage
- Battery protection circuit protects against overloading, over-discharging and over-heating
SPECIFICATIONS:
| Guide Bar Length |
300 mm (12) |
| Saw chain |
Gauge:1.1 1.3 mm (0.043 0.050) |
|
Pitch:3/8 |
| Chain Speed |
0 20 m/s (0 1,200 m/min) (0 3,940 FPM) |
| Max Output |
1,500 W |
| Oil Tank Capacity |
160 mL |
| Sound Pressure Level |
90 dB(A) |
| Sound Power Level |
104 dB(A) |
| Noise K Factor |
3 dB(A) |
| Vibration Level Left Handle |
3.1 m/s |
| Vibration Level Right Handle |
2.5 m/s or less |
| Vibration K Factor |
1.5 m/s |
| Dimensions (L x W x H) |
w/o Guide Bar, w/ BL4020/ BL4025/ BL4040 or w/o Battery:2,230 x 156 x 187 mm (88 x 6-1/8 x 7-3/8) |
|
w/o Guide Bar, w/ BL4050F/ BL4080F:2,230 x 156 x 192 mm (88 x 6-1/8 x 7-9/16) |
|
w/ Guide Bar & Saw Chain, w/ BL4020/ BL4025/ BL4040 or w/o Battery:2,526 x 156 x 187 mm (99-1/2 x 6-1/8 x 7-3/8) |
|
w/ Guide Bar & Saw Chain, w/ BL4050F/ BL4080F:2,526 x 156 x 192 mm (99-1/2 x 6-1/8 x 7-9/16) |
| Net weight |
6.1 7.4 kg (13.4 16.3 lbs.) |
