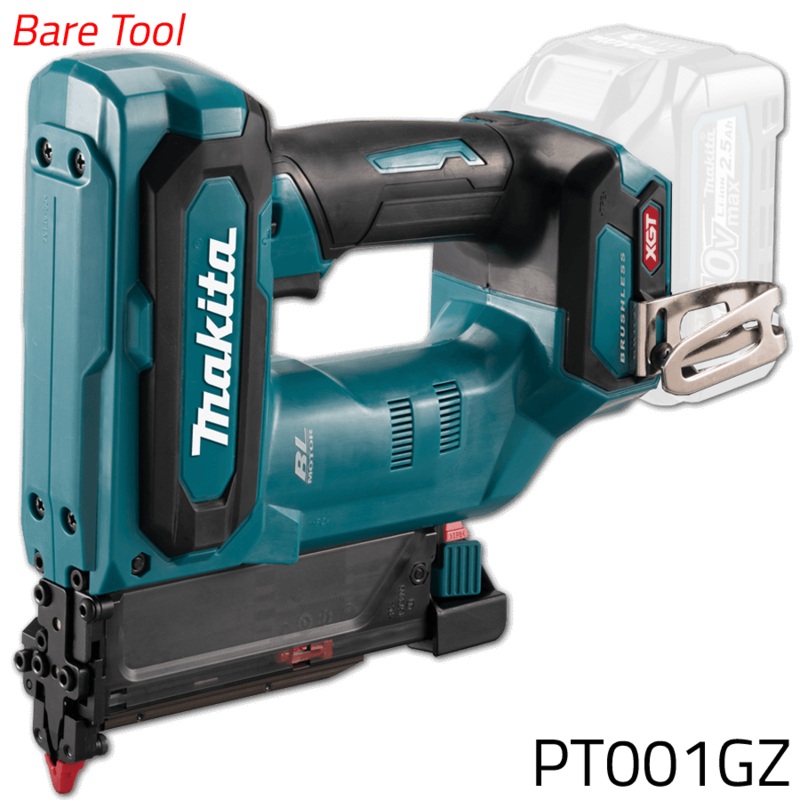

Bare Tool – Battery and charger not included
FEATURES:
- Developed mainly for interior nailing operations where a high quality finish is required, e.g. installation of baseboards, crown moldings and more
- Use of BL motor and redesigned driving spring lets users operate nearly as if they were using a pneumatic pin nailer
- Quick firing thanks to BL motor
- Low reaction force mechanism enables easier long pin nailing and high-quality finish
- Main application: Interior nailing Baseboard/ Crown molding/ Panel, etc.
- 40Vmax XGT battery and BL motor for high power
- Improved driver durability achieved by redesigning the shape of the driver tip and reducing thin places
- Extreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions
- IP56-rated dust and shower-proof construction
- Drives 5 different lengths of 23 gauge pin nails (15 mm (5/8), 18 mm (11/16), 25 mm (1), 30 mm (1-3/16) and 35 mm (1-3/8)); magazine capacity up to 120 nails
- Anti-dry fire mechanism engineered to minimize driving blanks and damage to work surface
- Nose tip designed to provide better visibility
- Contact arm mechanism enables continuous nailing and drag nailing
- Driving depth adjustment by dial (Adjustment range is the same as DPT353)
- Nose tip designed to provide better visibility so that nails can be fired in the groove of baseboard
- Single LED job light with pre-glow and after-glow functions
- Ergonomically designed grip provides increased comfort
- Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating
SPECIFICATIONS:
| Capacity |
Length:15, 18, 25, 30, 35 mm (5/8, 11/16, 1, 1-3/16, 1-3/8) |
|
Dia.:0.6 mm (1/32) |
|
Gauge:23 Ga |
| Magazine capacity |
120 |
| Approx. work volume on a full battery charge |
w/ BL4025:6,000 shots |
| Vibration level |
2.5 m/s or less |
| Vibration K factor |
1.5 m/s |
| Sound pressure level |
79 dB(A) |
| Noise K factor |
3 dB(A) |
| Dimensions (L x W x H) |
w/o Battery:218 x 86 x 226 mm (8-5/8 x 3-3/8 x 8-7/8) |
|
w/ BL4020 / BL4025:265 x 86 x 226 mm (10-3/8 x 3-3/8 x 8-7/8) |
|
w/ BL4040:271 x 86 x 232 mm (10-5/8 x 3-3/8 x 9-1/8) |
|
w/ BL4050F:291 x 86 x 253 mm (11-1/2 x 3-3/8 x 10) |
| Net weight |
2.4 3.0 kg (5.3 6.6 lbs.) |
