FEATURES:
- High performance and durability at less expense
- Re-located operating mode lever for increased protection and durability
- Improved bit guide for increased bit stability during drilling applications
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
- Soft grip provides more comfort and control
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Forward/reverse lever position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
- 2-mode operation for Rotation Only or Hammering with Rotation
- Variable speed trigger allows operator to adjust speed based on materials or application
- One-touch sliding chuck for easy bit installation and removal
- Depth gauge for increased drilling consistency
- Recessed lock-on button for continuous use
- Double insulated
SPECIFICATIONS:
| Continuous Rating Input |
710W |
| Capacity |
Concrete: 22 mm (7/8) |
|
Steel: 13 mm (1/2) |
|
Wood: 32 mm (1-1/4) |
|
Core Bit: 54 mm (2-1/8) |
|
Diamond Core Bit (Dry Type): 65 mm (2-9/16) |
| Chuck Capacity |
1.5 13 mm (1/16 1/2) |
| Shank Type |
Hammer: SDS-PLUS Shank |
| Blows Per Minute (BPM) |
0 4,350 |
| No Load Speed (RPM) |
0 1,100 |
| Sound Pressure Level |
90 dB(A) |
| Sound Power Level |
101 dB(A) |
| Noise K Factor |
3 dB(A) |
| Vibration Level |
Hammer Drilling into Concrete:15.5 m/s |
|
Drilling into Metal:3 m/s |
| Vibration K Factor |
Hammer Drilling into Concrete:1.5 m/s |
|
Drilling into Metal:1.5 m/s |
| Dimensions (L x W x H) |
362 x 71 x 194 mm (14-1/4 x 2-13/16 x 7-5/8) |
| Net weight |
2.5 2.9 kg (5.6 6.4 lbs.) |
| Power supply cord |
4.0 m (13.1 ft) |

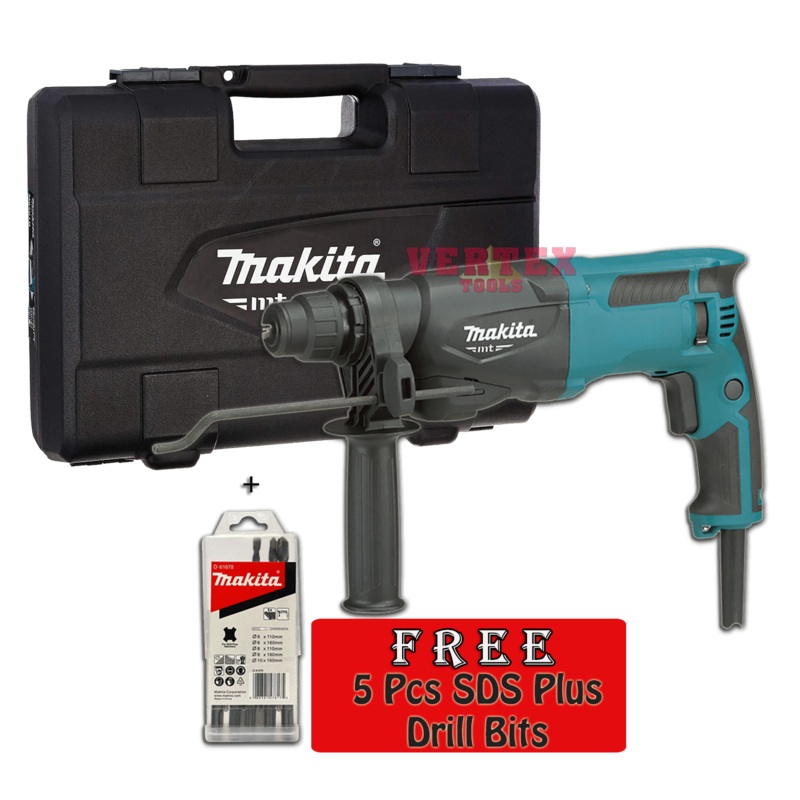

With 5 Pcs SDS Plus Drill Bits (6x110mm, 6x160mm, 8x110mm, 8x160mm, 10x160mm)
