Bare Tool – Battery and Charger not yet included
Features:

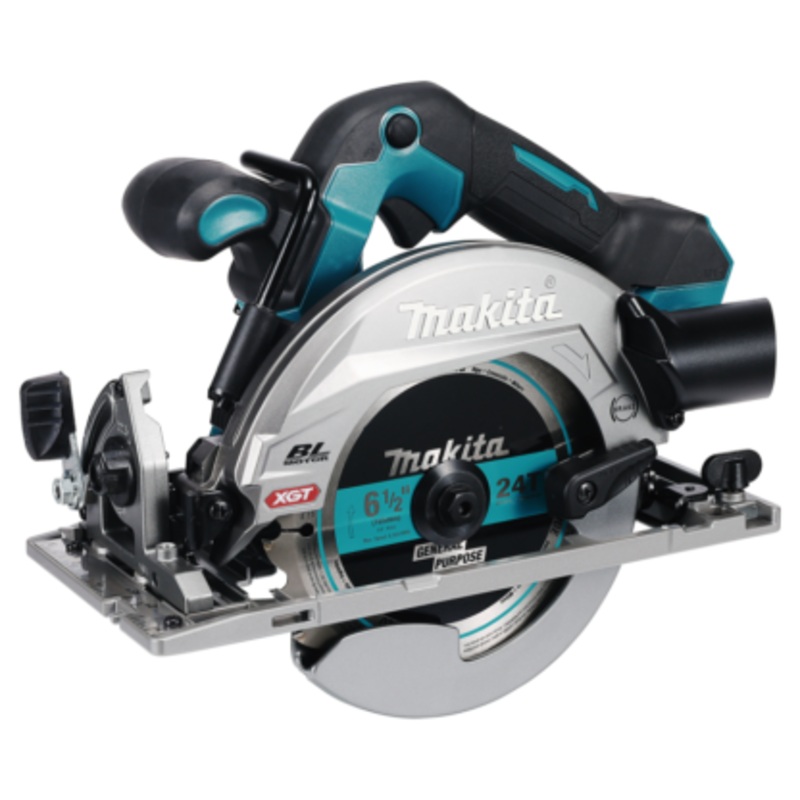

- 40Vmax XGT BL AWS Cordless 165 mm (6-1/2) Magnesium Circular Saw, Electric Brake, Soft Start, Twin LED Light
- Developed based on the compact design of DHS680, yet is powered by powerful 40Vmax XGT battery to provide excellent combination of high power and good maneuverability
- Compact design
- The machines overall width has been decreased by reducing the number of motor core layers from 24 to 15, providing higher maneuverability in operation in tight places
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners via Bluetooth
- Magnesium diecast base, Magnesium diecast safety cover, Magnesium diecast blade case
- Metal guide for cutting line
- Easy-to-operate Lock-off button minimizes accidental start up
- Positive bevel stop (at 22.5and 45)
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Electric brake for maximum productivity
- Twin LED lights with preglow and afterglow functions for better illumination and more accurate work
- Soft start suppresses start-up reaction for more control and better accuracy
- Constant speed control minimizes reduction in rotation speed under load
- Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
- Soft grip provides increased comfort on the job
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Tool hanger for hanging on a ladder or rafter
- Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
| MAX OUTPUT |
1,300 W |
| WHEEL DIAMETER |
165 mm (6-1/2) |
| HOLE DIAMETER |
20 mm (13/16) |
|
North America: 15.88 mm (5/8) |
|
20 / 30 mm / VN |
| BLADE BODY THICKNESS |
1.00 1.70 mm |
| MAX CUTTING CAPACITY |
0: 57 mm (2-1/4) |
|
45: 41 mm (1-5/8) |
| NO LOAD SPEED (RPM) |
5,200 |
| VIBRATION LEVEL |
Cutting wood: 2.5 m/s or less |
|
Cutting metal: 2.5 m/s or less |
| VIBRATION K FACTOR |
Cutting wood: 1.5 m/s |
|
Cutting metal: 1.5 m/s |
| SOUND PRESSURE LEVEL |
91 dB(A) |
| SOUND POWER LEVEL |
102 dB(A) |
| NOISE K FACTOR |
3 dB(A) |
| DIMENSIONS (L X W X H) |
w/o Battery: 298 x 157 x 246 mm (11-3/4 x 6-3/16 x 9-11/16) |
|
w/ BL4020 / BL4025: 352 x 157 x 246 mm (13-7/8 x 6-3/16 x 9-11/16) |
|
w/ BL4040: 359 x 157 x 246 mm (14-1/8 x 6-3/16 x 9-11/16) |
|
w/ BL4050F: 388 x 157 x 246 mm (15-1/4 x 6-3/16 x 9-11/16) |
|
w/ BL4080F: 406 x 157 x 246 mm (16 x 6-3/16 x 9-11/16) |
| NET WEIGHT |
3.2 4.4 kg (7.1 9.7 lbs.) |
