FEATURES:
- 8.0 Joules (EPTA) Impact Energy Delivers High Performance Equivalent to HR4013C
- BL motor delivers high power and excellent performance equivalent to corded model HR4013C
- Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Low vibration achieved by Anti-Vibration Technology (AVT) & SOFT NO LOAD (suppression of motor speed during no-load)
- BL motor delivers 250-500 RPM and 1,450-2,900 BPM
- BL motor with high power to weight and size ratio
- BL motor generates less heat buildup and is ideal for prolonged use in high production applications
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Twin LED job lights with preglow and afterglow functions
- Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Variable speed control dial allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Soft start for smooth start-ups
- Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance
- 2-mode operation for Hammering Only or Hammering with Rotation for multiple applications
- Depth gauge for increased drilling consistency. Electric brake for maximum productivity. Battery protection circuit protects against overloading, over-discharging and over-heating

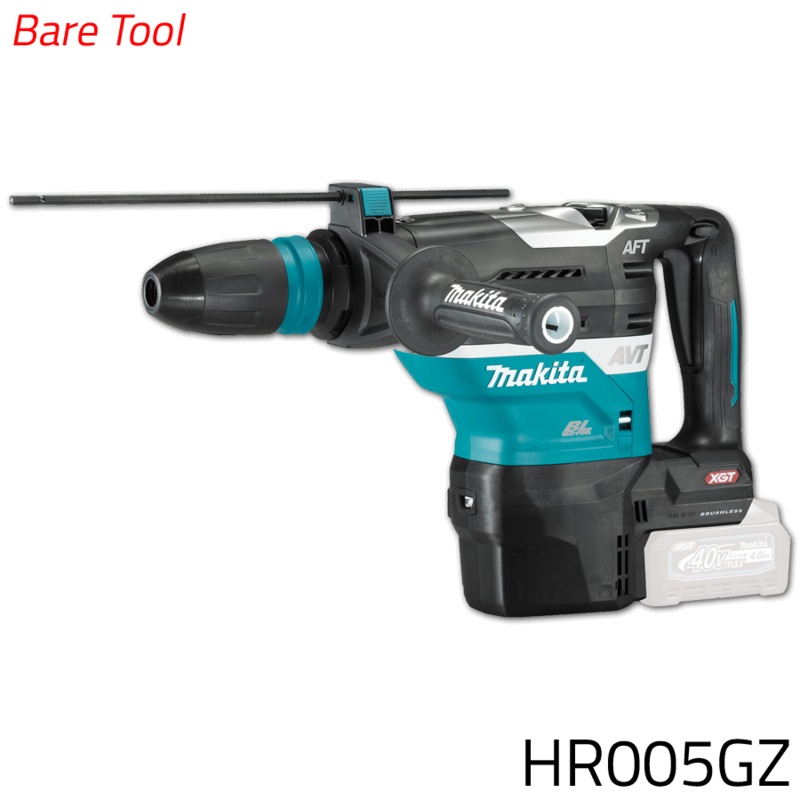

Bare Tool – Battery and Charger not included
SPECIFICATIONS:
| Impact Energy |
EPTA-Procedure 05/2009:8 J |
|
Our experimental conditions:11.4 J |
| Capacity |
Concrete (w/ TCT Bit):40 mm (1-9/16) |
|
Concrete (w/ Core Bit):105 mm (4-1/8) |
| Blows Per Minute (BPM) |
1,450 2,900 |
| No Load Speed (RPM) |
250 500 |
| Sound Pressure Level |
91 dB(A) |
| Sound Power Level |
102 dB(A) |
| Noise K Factor |
3 dB(A) |
| Vibration Level |
Hammer Drilling into Concrete:5.0 m/s |
| Vibration K Factor |
Hammer Drilling into Concrete:1.5 m/s |
| Vibration Level |
Chiselling Function w/ Side Grip:4.0 m/s |
| Vibration K Factor |
Chiselling Function w/ Side Grip:1.5 m/s |
| Vibration Level |
Chiselling Function w/ Side Handle:4.0 m/s |
| Vibration K Factor |
Chiselling Function w/ Side Handle:1.5 m/s |
| Dimensions (L x W x H) |
w/o Battery:477 x 115 x 286 mm (18-3/4 x 4-1/2 x 11-1/4) |
|
w/ BL4040:500 x 115 x 286 mm (19-3/4 x 4-1/2 x 11-1/4) |
|
w/ BL4050F:520 x 115 x 305 mm (20-1/2 x 4-1/2 x 12) |
| Net weight |
7.4 8.2 kg (16.3 18.1 lbs.) |
