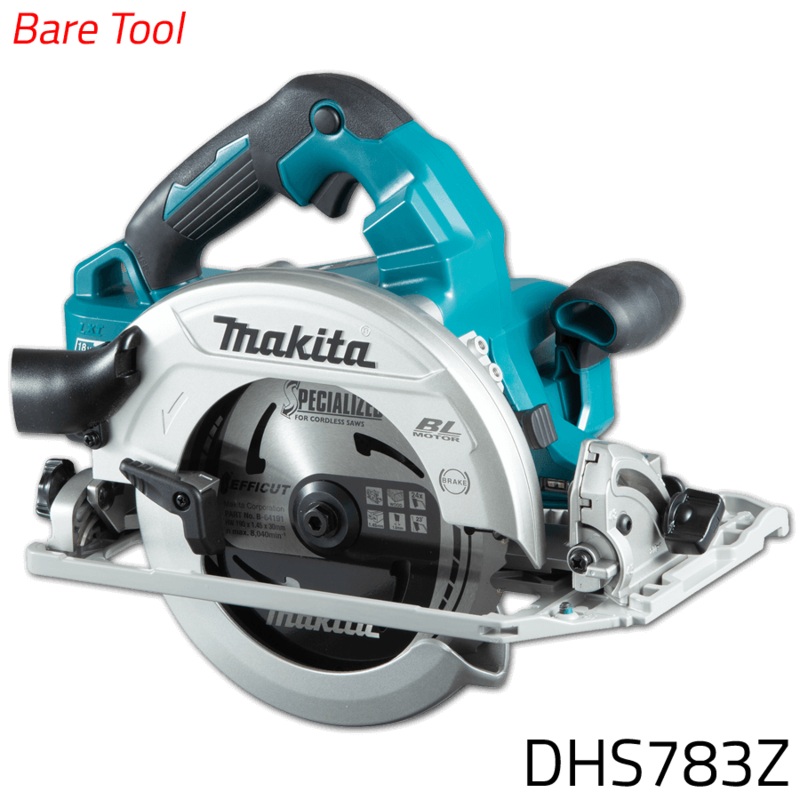

FEATURES:
- Compatible with Guide Rail without Adapter, Providing Precision Cutting
- Increased visibility of ink line position
- 6,000 RPM for fast cutting
- 18V solution for corded power demands
- Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
- BL motor delivers 6,000 RPM for fast cutting
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Large cutting capacity (62.5 mm at 90) and bevel capacity (0 48) with a positive stop at 45
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
- Overload alert using ADT lamp
- Optional hook is compatible with 3X materials
- High visibility of scale enables to adjust the scale without looking into the scale thanks to separation and relocation of scale
- Electric brake for maximum productivity and increased operator safety
- Greater blade visibility from motor side
- Dual LED lights with preglow and afterglow functions for better illumination and more accurate work
- Magnesium components create lightweight saws that are well-balanced and jobsite tough
- Soft start for smooth start-ups
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions.
- Soft grip provides increased comfort on the job.
- Lock-off (2 stage) safety switch for increased operator safety.
- Battery protection circuit protects against overloading, over-discharging and over-heating. Optional handy rip fence (guide rule) allows you to do extra-accurate straight cuts
Bare Tool – Battery and charger not included
SPECIFICATIONS:
| Blade Diameter |
190 / 185 mm (7-1/2 / 7-1/4) |
| Hole Diameter |
15.88 / 20 / 30 mm (5/8 / 13/16 / 1-3/16) |
| Max Cutting Capacity |
90:62.5 / 60 mm (2-7/16 / 2-3/8) |
|
45:44.5 / 43 mm (1-3/4 / 1-11/16) |
|
48:42 / 41 mm (1-5/8 / 1-5/8) |
| No Load Speed (RPM) |
6,000 |
| Max Output |
1,800 W |
| Vibration Level |
Cutting Wood:2.5 m/s or less |
| Vibration K Factor |
Cutting Wood:1.5 m/s |
| Vibration Level |
Cutting Metal:2.5 m/s or less |
| Vibration K Factor |
Cutting Metal:1.5 m/s |
| Sound Pressure Level |
93 dB(A) |
| Sound Power Level |
104 dB(A) |
| Noise K Factor |
3 dB(A) |
| Dimensions (L x W x H) |
348x210x290 mm (13-3/4×8-1/4×11-3/8) |
| Net weight |
4.5 5.1 kg (9.9 11.3 lbs.) |
