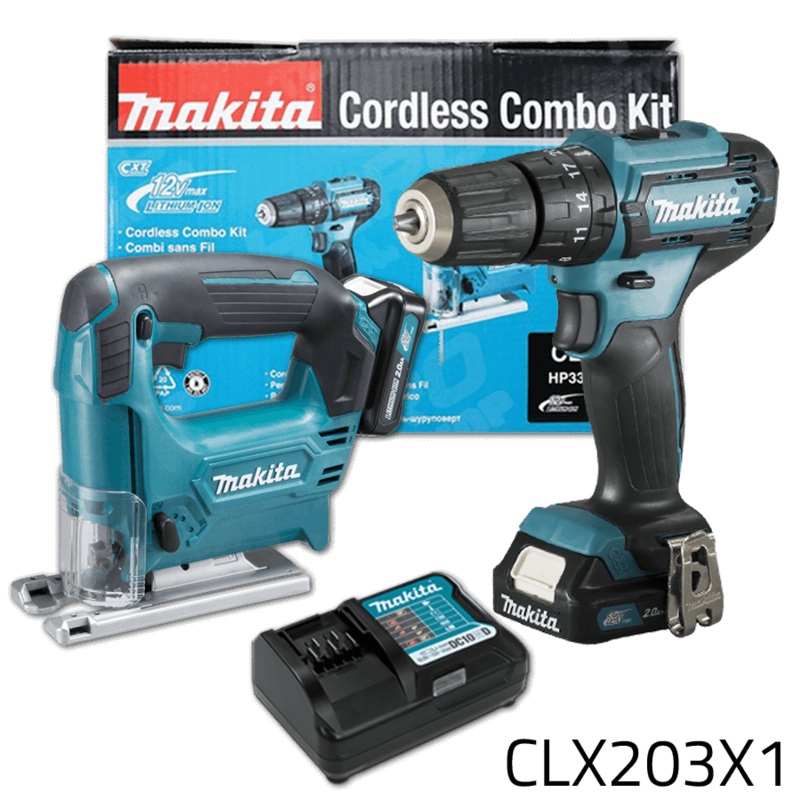

Combo Kit Inclusions:
- 1 xMakita HP333D12V Cordless Hammer Drill – Driver (CXT-Series)[Bare Tool]
- 1 x Makita JV101D 12V Cordless Jigsaw (CXT-Series) [Bare Tool]
- 2 xMakita BL1016 12V 1.5Ah Lithium-Ion Battery (CXT Series)
- 1 xMakita DC10WD 12V Battery Charger (CXT Series)
- 1 x MakitaD-34877 Jigsaw Blade
- 1 x MakitaD-34899 Jigsaw Blade
- 1 x MakitaD-34908 Jigsaw Blade
- 1 x Makita D-07054 Drill Bit (6mm for wood)
- 1 x MakitaD-05256 Drill Bit (6mm for Masonry)
- 1 x MakitaD-38401 Drill Bit(5mm for HSS-R Metal)
- 1 x MakitaD-38401 Drill Bit(5mm for HSS-R Metal)
Makita HP333DZ 12V Cordless Hammer Drill – Driver (CXT-Series)[Bare Tool]
SPECIFICATIONS:
| Capacity |
Steel / Wood / Masonry:10 / 21 / 8 mm (3/8 / 13/16 / 5/16) |
| Chuck Capacity |
0.8 10 mm (1/32 3/8) |
| Impacts Per Minute (IPM) |
High / Low:0 25,500 / 0 6,750 |
| No Load Speed (RPM) |
High / Low:0 1,700 / 0 450 |
| Max Fastening Torque |
Hard / Soft:30 / 14 Nm (270 / 130 in.lbs.) |
| Max Lock Torque |
28 Nm (250 in.lbs.) |
| Max Output |
170 W |
| Clutch Torque Setting |
0.5 3.5 Nm (4 30 in.lbs.) |
| Vibration Level |
Impact Drilling into Concrete:13.0 m/s |
| Vibration K Factor |
Impact Drilling into Concrete:1.5 m/s |
| Vibration Level |
Drilling into Metal:2.5 m/s or less |
| Vibration K Factor |
Drilling into Metal:1.5 m/s |
| Sound Pressure Level |
82 dB(A) |
| Sound Power Level |
93 dB(A) |
| Noise K Factor |
3 dB(A) |
| Dimensions (L x W x H) |
w/ BL1016/BL1021B:193 x 66 x 212 mm (7-5/8 x 2-5/8 x 8-3/8) |
|
w/ BL1041B:193 x 66 x 229 mm (7-5/8 x 2-5/8 x 9) |
| Net weight |
1.1 1.3 kg (2.4 2.9 lbs.) |
Makita JV101DZ 12V Cordless Jigsaw (CXT-Series) [Bare Tool]
Specifications:
| Max Cutting Capacity at 90 |
Wood / Aluminum / Mild Steel: 65 / 4 / 2 mm (2-9/16 / 5/32 / 1/16) |
| Length of Stroke |
18 mm (11/16) |
| Strokes Per Minute (SPM) |
0-2,900 |
| Vibration Level |
Cutting Boards: 7.0 m/s |
|
Cutting Sheet Metal: 5.5 m/s |
| Sound Pressure Level |
80 dB(A) |
| Sound Power Level |
91 dB(A) |
| Dimensions (L x W x H) |
232x76x196 mm (9-1/8x3x7-3/4) |
| Net weight |
1.8 1.9 kg (3.9 4.3 lbs) |
Makita BL1016 12V 1.5Ah Lithium-Ion Battery (CXT Series)
- CXT Series (12V)
- 1.5 Ah Battery
- Average recharge cycles: 400 Cycles.
- Charging Time: 50 minutes
Makita DC10WD 12V Battery Charger (CXT Series)
- 12V CXT charger
- Charger communicates with the batterys built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
- Charging status lights indicate the time it will take to charge a CXT battery
- Charges a 12V max CXT Lithium-Ion 1.5Ah battery in only 50 minutes
- Charges a 12V max CXT Lithium-Ion 2.0Ah battery in only 70 minutes
- Charges a 12V max CXT Lithium-Ion 4.0Ah battery in only 130 minutes
- Wall mountable to maximize work space
- Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max pod-style batteries
- Only use genuine Makita batteries
