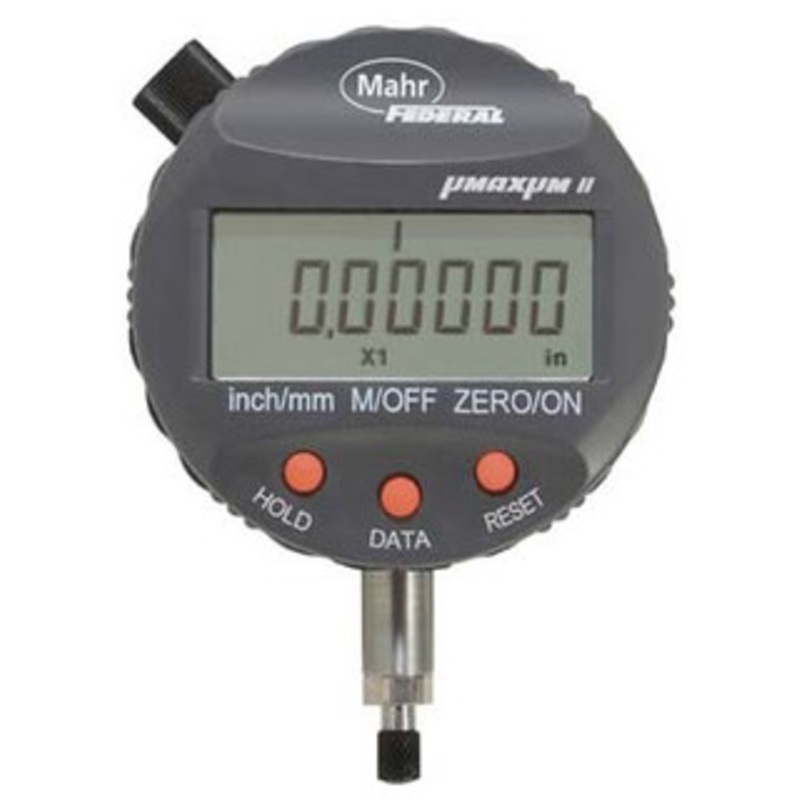

Mahr Inductive Digital Comparator uMaxum II Millimess
2034205

Function:

• ON/OFF
• RESET (set display to zero)
• mm/inch
• Reversal of counting direction
• ABS (display can be set to zero without losing reference to preset)
• MAX/MIN memory for searching the reversal point
• TIR (MAX-MIN) for testing flatness and concentricity
• Factor (adjustable)
• HOLD (storage of measured values)

Product Features:

• Inductive absolute measuring system
• Large, high contrast display with numerical and scale display
• Control and display unit rotatable through 270
• Zero point setting is retained even after switching off the dial indicator

Energy supply: Battery operation

Dimensions:

Mounting shaft 8 mm a 11.7 mm b 24.1 mm c 53.599998 mm

Technical Data:

Measuring range from -1 mm Measuring range up to 1 mm Measuring range 1 _beginning_ mm -0.5 mm Measuring range 1 _end mm 0.5 mm Measuring range 1 _beginning -0.02 inch Measuring range 1 _end inch 0.02 inch Resolution 0.0002 mm, 0.0005 mm, 0.001 mm, 0.002 mm,
0.005 mm, 0.01 mm, 0.02 mm Resolution 0.00001 Custom.U597, 0.00002 Custom.U597,
0.00005 Custom.U597,0.0001 Custom.U597,
0.0002 Custom.U597, 0.0005 Custom.U597,
0.001 Custom.U597 Minimum measuring force 0.8 N Maximum measuring force 1.1 N Height of digits 8 mm
