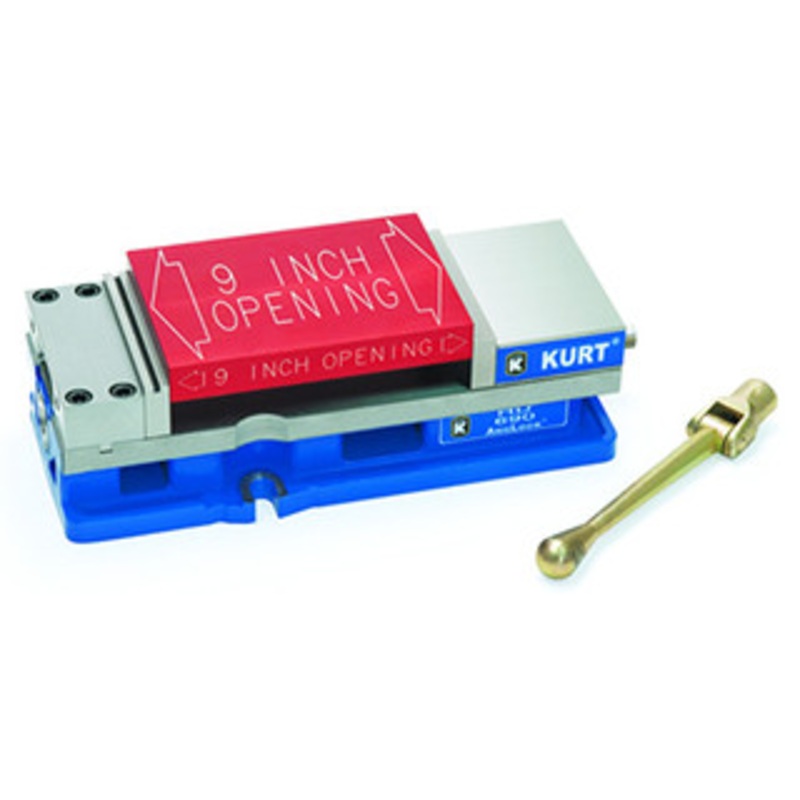

Kurt HDM690 Vise, The First 6″ Pull type Vise with a 9″ Opening

Features:

• A full 9 inch opening between jaws.
• Less deflection of stationary jaw. Wider more stable stationary jaw equals less deflection.
• Stationary jaw bolts down from top. No need to remove from table to disassemble vise. Bolting the stationary from the top reduces the stress in the body and will stay flatter after assembly.
• Narrower body width allows more vises in the same work envelope.
• Taller body design equals less deflection under clamping loads.
• Bolts and locates directly on standard grid plates: 40mm, 50mm or 2 inch.
• Pull type body design reduces stress in the body resulting in more accurate clamping.
• Quick change movable jaw. The HD platform movable jaw allows for quick change and carvability to hold that odd shaped part.
• GrooveLock jaw and workstop included.
• Adaptable to hydraulic. Uses sine keys for alignment.
• Swivel base available.
