Kito ER2M Electric Chain Block Hoist with Motorized Trolley
Leveraging Today’s Most Advanced Hoisting Technology, This High-performance Hoist Exceeds the Expectations of Even the World’s Most demanding Users.

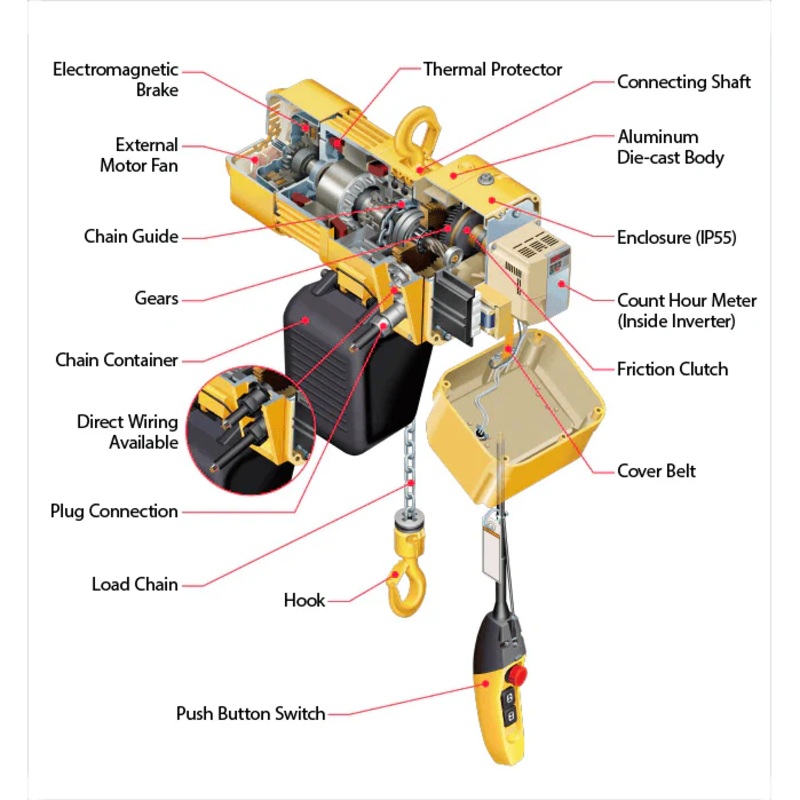

The compact aluminum die-cast body features exceptional rigidity and effective protection against dust and water. It has a simple structure and uses minimal parts, while the fine-tuned load-chain profile better exploits the lighter hoist body weight compared to the previous ER.
Compact body – lightweightSmooth and ergonomic operationReliable safetyEnhanced durabilityEasier maintenanceEnvironmentally friendly
Applications
Heavy Industry & steel industryFoundries & miningPaper industryFood industryWind turbines & automotive industry
| Single SpeedChain Hoist /Single SpeedMotorized Trolley |
| Code |
Capacity kg (tons) |
Unit Price |
Extra Lift Per Meter Price |
| ER2M-001 H-S/L |
125kg (18T) |
353,300.00 |
5,700.00 |
| ER2M-003 S-S/L |
250kg (1/4T) |
356,000.00 |
5,700.00 |
| ER2M-003 H-S/L |
250kg (1/4T) |
387,400.00 |
6,400.00 |
| ER2M-005 L-S/L |
500kg (1/2T) |
329,300.00 |
6,400.00 |
| ER2M-005 S-S/L |
500kg (1/2T) |
372,500.00 |
6,400.00 |
| ER2M-010 L-S/L |
1000kg (1T) |
349,000.00 |
6,700.00 |
| ER2M-010 S-S/L |
1000kg (1T) |
438,400.00 |
6,700.00 |
| ER2M-015 S-S/L |
1500kg (1.5T) |
509,900.00 |
8,400.00 |
| ER2M-020 L-S/L |
2000kg (2T) |
522,900.00 |
8,400.00 |
| ER2M-020 S-S/L |
2000kg (2T) |
570,900.00 |
8,400.00 |
| ER2M-025 S-S/L |
2500kg (2.5T) |
653,300.00 |
9,200.00 |
| ER2M-030 S-S/L |
3000kg (3T) |
684,400.00 |
13,800.00 |
| ER2M-050 S-S/L |
5000kg (5T) |
996,300.00 |
15,300.00 |
Standard Lift is 3 Meters. Standard Supply is 10 Meters. Cable Hanger Option
Number of Cable hanger required is (travel span x 1.2) / 2 meters
7.5~20T (ERM 7.5~200) Available upon request
Standard Voltage is 220V, 3 Phase,60Hz, for 440V, price add 10%
Motorized Trolley only, available upon request
Overload limiter available as option
W-30 Flange Width 305mm, available upon request
Traversing Speed, 24mpm, 12mpm upon request
Motor ED duty rating – 60%
Standard PSC is 10 mets, Power Supply Cable must be equal to Travel x 1.2 + 2meters |
| Code |
Hoist Body |
Traversing Motor Output Kw |
Lifting Speed m/min 60Hz |
Flange Width: B mm |
Min Radius |
| ER2M-001 H-S/L |
B |
0.56 |
16.90 |
58~153mm |
800 |
| ER2M-003 S-S/L |
B |
0.56 |
10.90 |
58~153mm |
800 |
| ER2M-003 H-S/L |
C |
0.90 |
16.10 |
58~153mm |
800 |
| ER2M-005 L-S/L |
C |
0.56 |
4.60 |
58~153mm |
800 |
| ER2M-005 S-S/L |
C |
0.90 |
8.80 |
58~153mm |
800 |
| ER2M-010 L-S/L |
D |
0.90 |
4.20 |
58~153mm |
800 |
| ER2M-010 S-S/L |
D |
1.80 |
8.50 |
58~153mm |
800 |
| ER2M-015 S-S/L |
E |
1.80 |
5.40 |
82~178mm |
800 |
| ER2M-020 L-S/L |
E |
1.80 |
4.40 |
82~178mm |
800 |
| ER2M-020 S-S/L |
E |
3.50 |
8.40 |
82~178mm |
800 |
| ER2M-025 S-S/L |
F |
3.50 |
6.80 |
82~178mm |
1000 |
| ER2M-030 S-S/L |
E |
3.50 |
5.30 |
82~178mm |
1000 |
| ER2M-050 S-S/L |
F |
3.50 |
3.50 |
100~178mm |
1800 |
| Dual Speed Chain Hoist / Single Speed Motorized Trolley |
| Code |
Capacity kg (tons) |
Unit Price |
Extra Lift Per Meter Price |
| ER2M-001 IH-S/L |
125kg (18T) |
413,600.00 |
6,000.00 |
| ER2M-003 IS-S/L |
250kg (1/4T) |
413,600.00 |
6,000.00 |
| ER2M-003 IH-S/L |
250kg (1/4T) |
467,000.00 |
6,700.00 |
| ER2M-005 IL-S/L |
500kg (1/2T) |
437,800.00 |
6,700.00 |
| ER2M-005 IS-S/L |
500kg (1/2T) |
461,400.00 |
6,700.00 |
| ER2M-010 IL-S/L |
1000kg (1T) |
494,900.00 |
7,100.00 |
| ER2M-010 IS-S/L |
1000kg (1T) |
526,900.00 |
7,100.00 |
| ER2M-015 IS-S/L |
1500kg (1.5T) |
600,000.00 |
8,800.00 |
| ER2M-020 IL-S/L |
2000kg (2T) |
613,700.00 |
8,800.00 |
| ER2M-020 IS-S/L |
2000kg (2T) |
679,200.00 |
8,800.00 |
| ER2M-025 IS-S/L |
2500kg (2.5T) |
775,500.00 |
9,600.00 |
| ER2M-030 IS-S/L |
3000kg (3T) |
803,700.00 |
14,300.00 |
| ER2M-050 IS-S/L |
5000kg (5T) |
1,152,100.00 |
15,900.00 |
Standard Lift is 3 Meters. Standard Supply is 10 Meters. Cable Hanger Option
Number of Cable hanger required is (travel span x 1.2) / 2 meters
7.5~20T (ERM 7.5~200) Available upon request
Standard Voltage is 220V, 3 Phase,60Hz, for 440V, price add 10%
Motorized Trolley only, available upon request
Overload limiter available as option
W-30 Flange Width 305mm, available upon request
Traversing Speed, 24mpm, 12mpm upon request
Motor ED duty rating – 60%
Standard PSC is 10 mets, Power Supply Cable must be equal to Travel x 1.2 + 2meters |
| Code |
Hoist Body |
Traversing Motor Output Kw |
Lifting Speed m/min 60Hz
(High/Low) |
Flange Width: B mm |
Min Radius |
| ER2M-001 H-S/L |
B |
0.40 |
16.6 / 2.8 |
58~153mm |
800 |
| ER2M-003 S-S/L |
B |
0.40 |
10.8 / 1.8 |
58~153mm |
800 |
| ER2M-003 H-S/L |
C |
0.40 |
15.7 / 2.6 |
58~153mm |
800 |
| ER2M-005 L-S/L |
C |
0.40 |
4.5 / 0.8 |
58~153mm |
800 |
| ER2M-005 S-S/L |
C |
0.40 |
8.5 / 1.4 |
58~153mm |
800 |
| ER2M-010 L-S/L |
D |
0.40 |
4.2 / 0.7 |
58~153mm |
800 |
| ER2M-010 S-S/L |
D |
0.40 |
8.2 /1.4 |
58~153mm |
800 |
| ER2M-015 S-S/L |
E |
0.40 |
5.3 / 0.9 |
82~178mm |
800 |
| ER2M-020 L-S/L |
E |
0.40 |
4.3 / 0.7 |
82~178mm |
800 |
| ER2M-020 S-S/L |
E |
0.40 |
|
