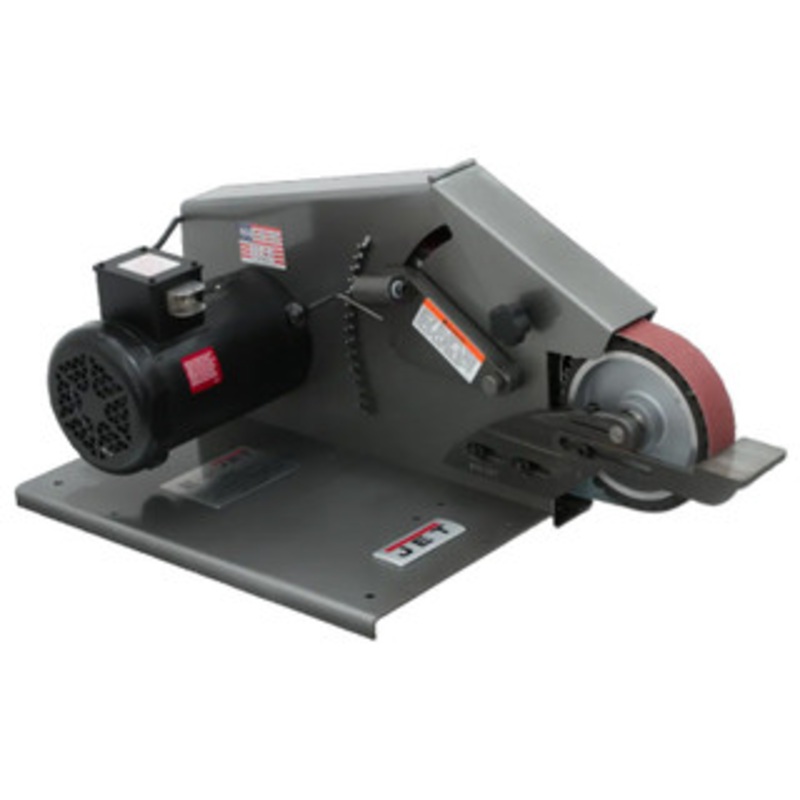

JET J-4103 2″ x 72″ Square Wheel Belt Grinder, 115V 1-Phase – 577000
The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Belt Grinder will grind, deburr and chamfer with equal proficiency both internal/external on part, large and small. Manufactured in the USA by JET.
Features:
- MADE IN THE U.S.A.
- Puts a satin finish on steel, iron or aluminum
- Grind difficult to reach areas with the 3″ x 2″ or 1-1/2″ x 2″ diameter contact wheels
- Yoke surface conforms to shape of the surface to produce an even, smooth finish
- For grinding, and refinishing cylindrical shapes.
- Performs intricate contouring or internal finishing on uniquely shaped parts
- Serrated contact wheel is used for removing heavy stock, cleaning up a weld or snagging a casting
Specifications:
| Item Number |
577000 |
| Model |
J-4103 |
| Style (Type) |
Belt |
| Belt Size (W x L) |
2″ x 72″ |
| Belt Speed (SFPM) |
4,600 |
| Contact Wheel Size (W x L) |
8″ x 2″, 3″ x 2″, 1-1/2″ x 2″ |
| Motor (HP) |
1 HP, 115/230V, 1-Phase |
| Overall Dimensions (L x W x H) |
17″ x 31″ x 17″ |
| Weight |
163 lbs. |
View the Instruction Manual
