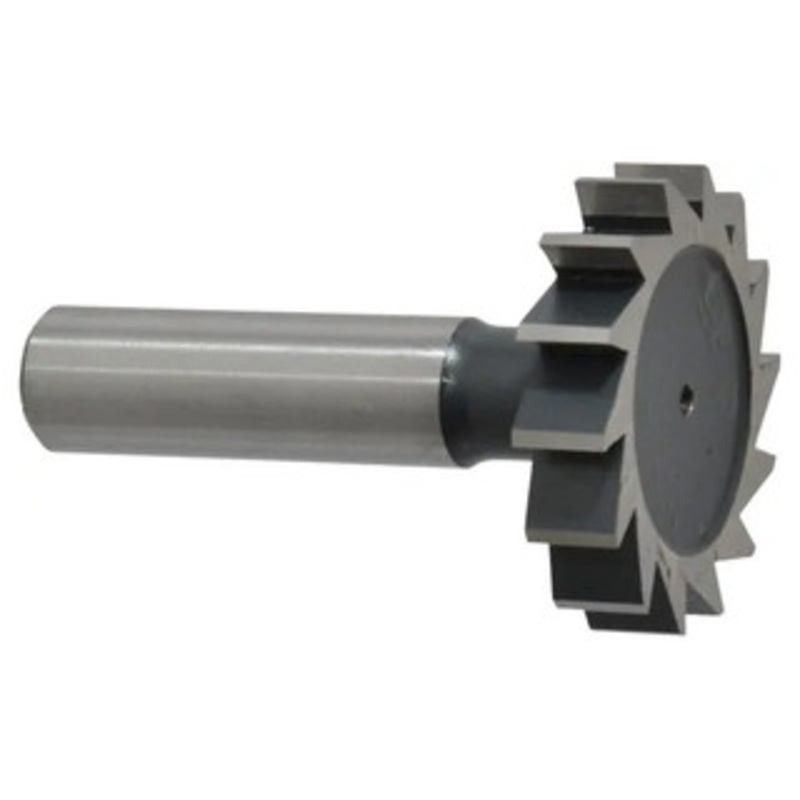

Interstate Straight Tooth Woodruff Key Seat Cutter, M42 Cobalt, 1-1/2″ Diameter, 5/16″ Face Width, 2-5/16″ OAL

Cobalt, 16 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-5/16″ OAL x 1/2″ Shank, Straight Teeth, ANSI 1012, Old Standard 25

Features:

• 1/2″ straight shank
• Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
• Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Specifications:

Connection Type Shank Old Standard Number 25 American Standard Number (ANSI) 1012 Cutting Diameter (Inch) 1-1/2 Cutting Diameter (Decimal Inch) 1.5000 Cutting Width (Inch) 5/16 Cutting Width (Decimal Inch) 0.3125 Tooth Configuration Straight Material Cobalt Finish/Coating Uncoated Shank Diameter (Inch) 1/2 Overall Length (Inch) 2-5/16 Number of Teeth 16 Material Grade M42
